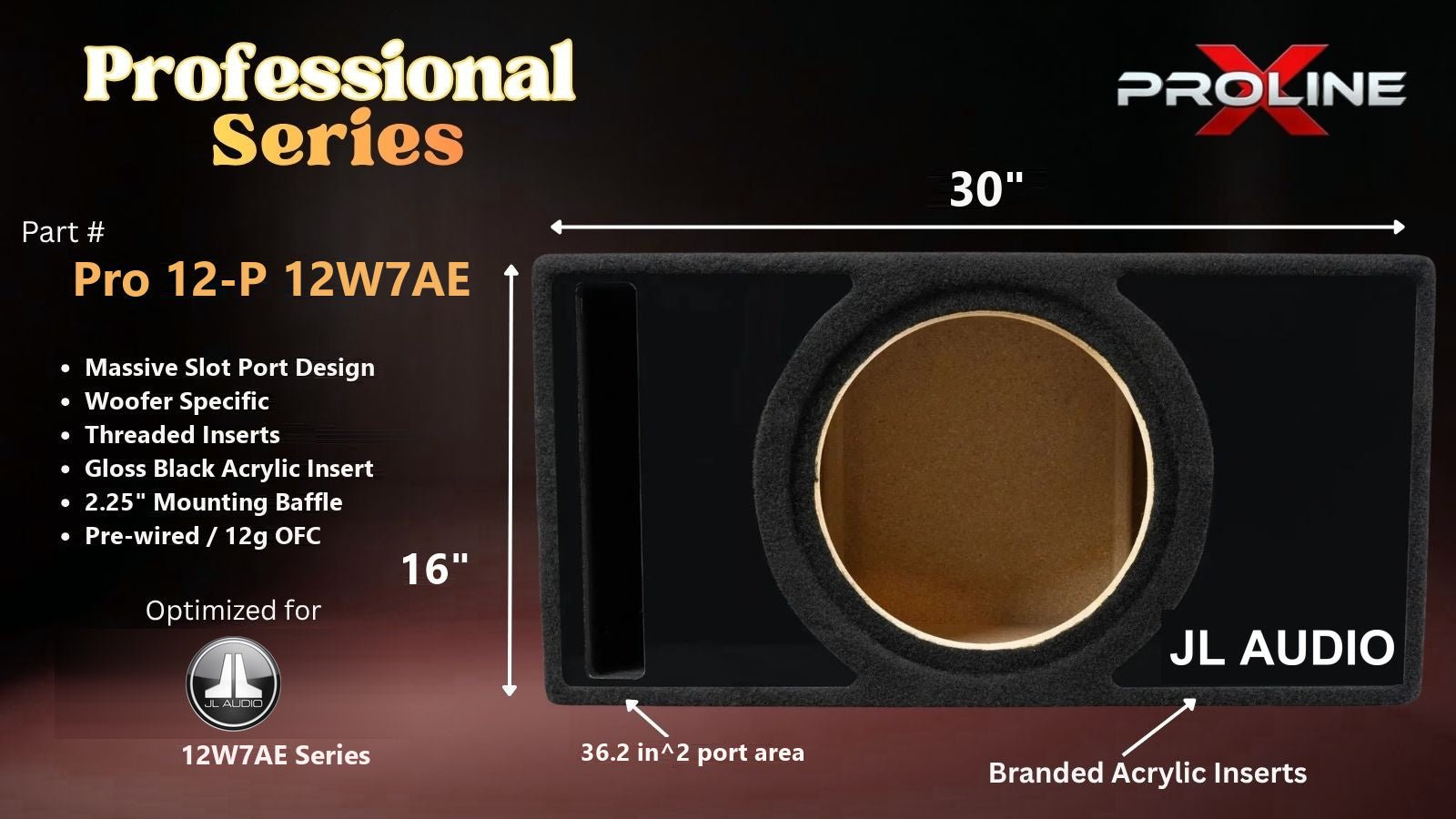

JL Audio 12W7AE Ported Enclosure, Single 12″
$481.99
Ported box for a single 12-inch subwoofer, made for the JL Audio 12W7AE: 1.77 cu ft net, tuned 36.7 Hz, up to 9.5 in mounting depth.
JL Audio 12W7AE Ported Enclosu...
$481.99
JL Audio 12W7AE ported enclosure for a single 12-inch driver: 1.77 cu ft net, tuned to 36.7 Hz, 36.2 sq in of port, F3 33.3 Hz.
Around 36.7 Hz the port does most of the work and output climbs several decibels over the same driver sealed. Below 36.7 Hz the cone is no longer loaded, so set a subsonic filter a few hertz under it.
With 36.2 square inches of port, air speed stays low enough that the port should stay quiet at high volume.
Listed construction: polyfill installed.
Your subwoofer's mounting depth needs to be 9.5 inches or less. The published figures assume the single 3 ohm versions of the driver. Send us your subwoofer model and we will check it against this box before you order.
Questions about fit? Call or text (785) 430-0822.
Box specifications
| Type | Ported |
|---|---|
| Drivers | Single, 12-inch |
| Net volume | 1.77 cu ft |
| Tuning | 36.7 Hz |
| Port area | 36.2 sq in |
| F3 (anechoic) | 33.3 Hz |
| Max mounting depth | 9.5 in |
| Height | 14.9 in |
| Width | 30 in |
| Depth | 9.5 in |
| Baffle | Double, 1.5 in |
| Made for | JL Audio 12W7AE |
