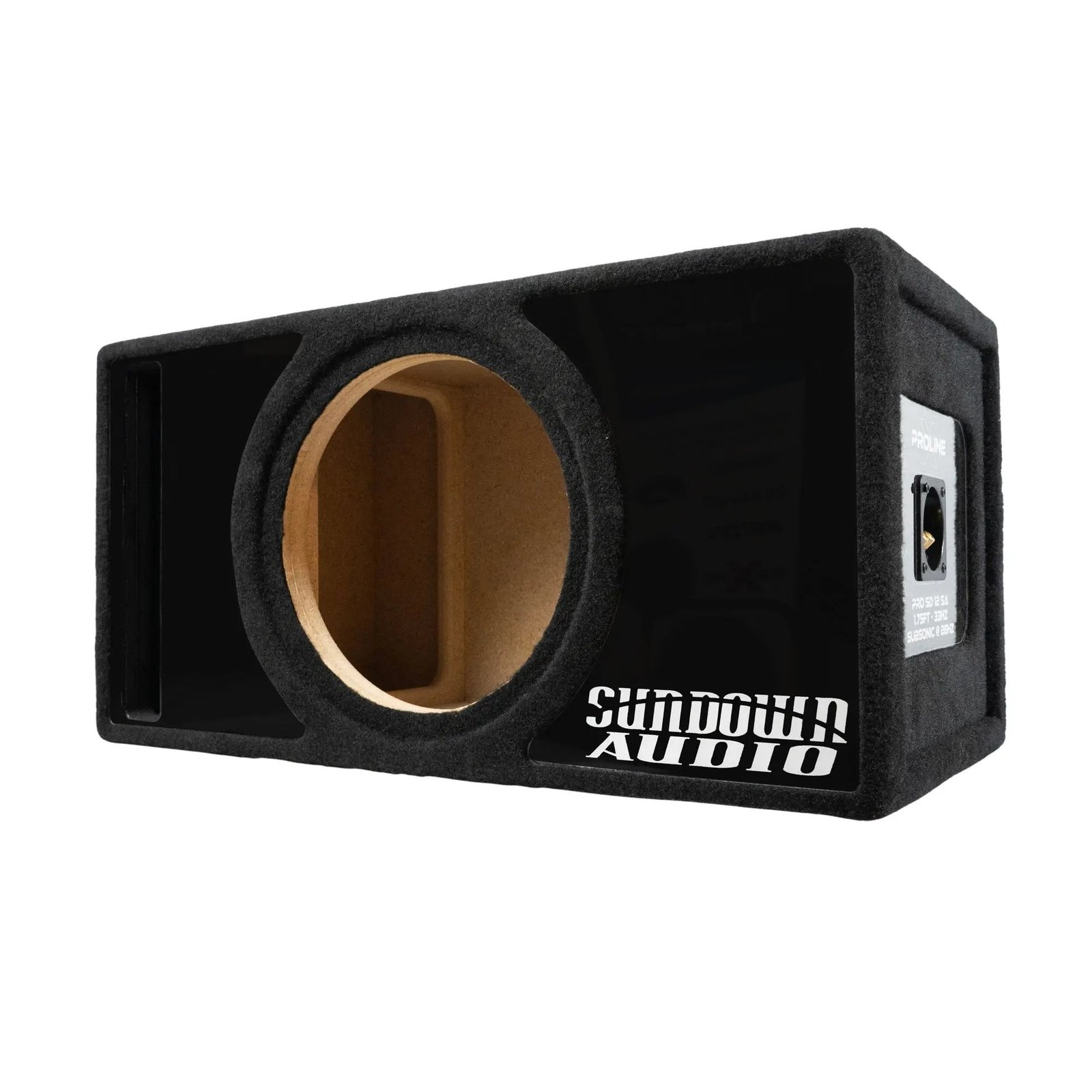

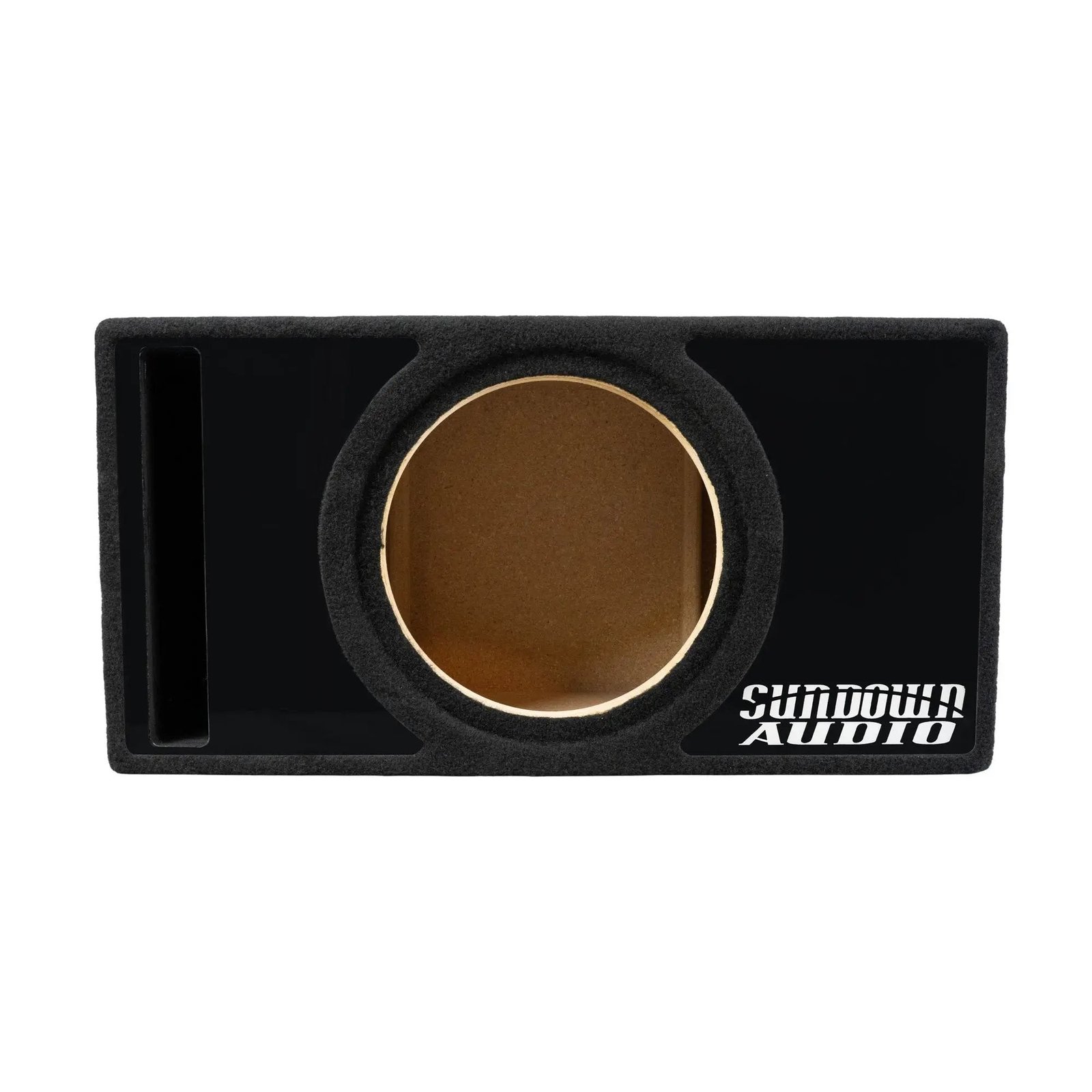

Sundown Audio SA-12 Ported Enclosure, Single 12″
$399.99
Ported box for a single 12-inch subwoofer, made for the Sundown Audio SA-12: 1.66 cu ft net, tuned 35 Hz, up to 12.84 in mounting depth.
Sundown Audio SA-12 Ported Enc...
$399.99

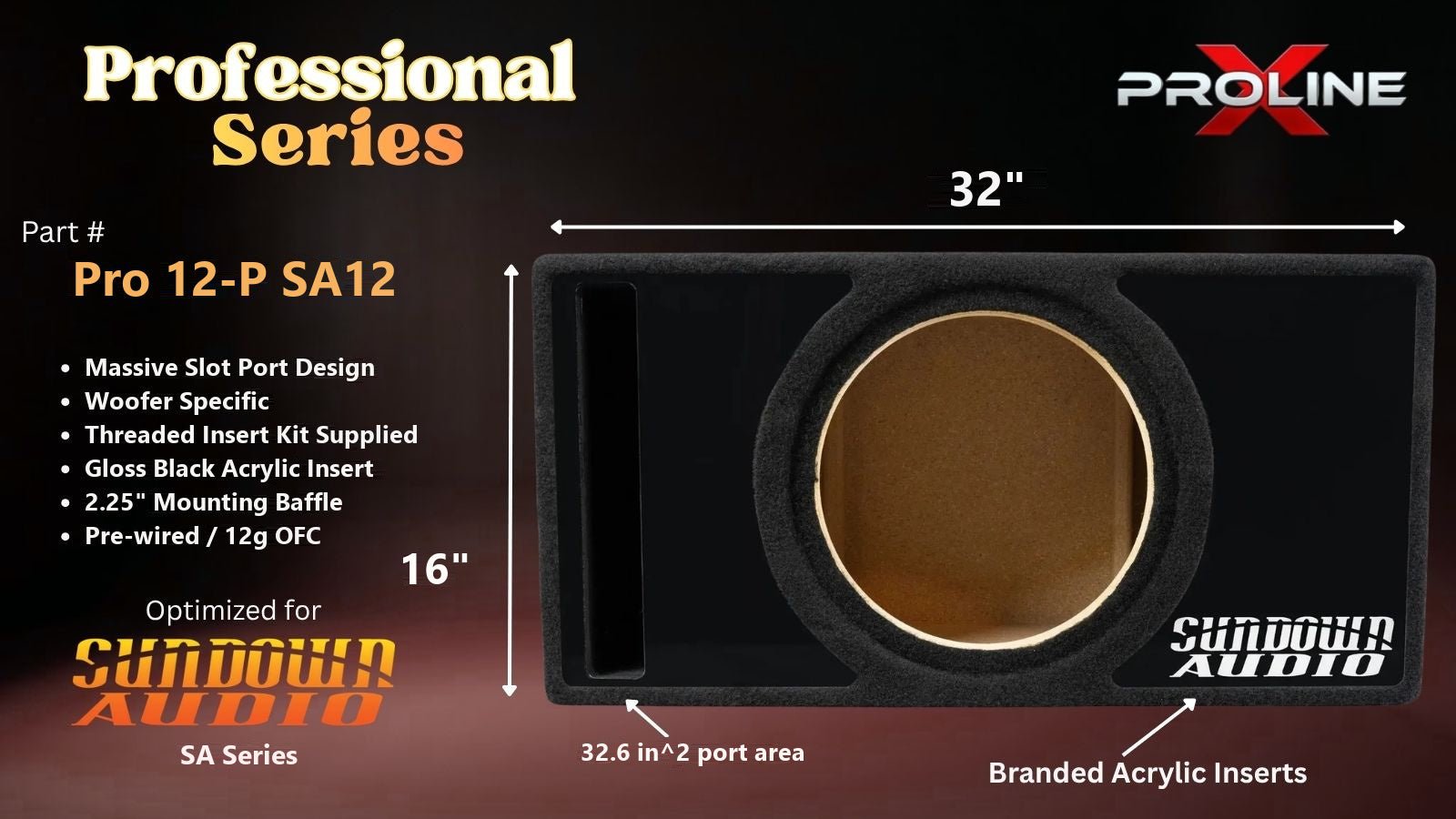

Sundown Audio SA-12 ported enclosure for a single 12-inch driver: 1.66 cu ft net, tuned to 35 Hz, 32.6 sq in of port, F3 29.9 Hz.
Around 35 Hz the port does most of the work and output climbs several decibels over the same driver sealed. Below 35 Hz the cone is no longer loaded, so set a subsonic filter a few hertz under it.
With 32.6 square inches of port, air speed stays low enough that the port should stay quiet at high volume.
Listed construction: polyfill installed.
Your subwoofer's mounting depth needs to be 12.84 inches or less. Send us your subwoofer model and we will check it against this box before you order.
Questions about fit? Call or text (785) 430-0822.
Box specifications
| Type | Ported |
|---|---|
| Drivers | Single, 12-inch |
| Net volume | 1.66 cu ft |
| Tuning | 35 Hz |
| Port area | 32.6 sq in |
| F3 (anechoic) | 29.9 Hz |
| Max mounting depth | 12.84 in |
| Width | 30 in |
| Depth | 13.75 in |
| Baffle | Double, 1.5 in |
| Made for | Sundown Audio SA-12 |
