JL Audio 10W1v3 Sealed Wedge Enclosure, Dual 10″
$319.99
Sealed box for a dual 10-inch subwoofer, made for the JL Audio 10W1v3: 0.55 cu ft net, Qtc 0.85, up to 4.6 in mounting depth.
JL Audio 10W1v3 Sealed Wedge E...
$319.99
JL Audio 10W1v3 dual sealed wedge enclosure for a 10-inch driver: 0.55 cu ft net, Qtc 0.85, F3 42.3 Hz.
At Qtc 0.85 there is a small rise just above the roll-off, which most people hear as punch on kick drums without the box getting bigger.

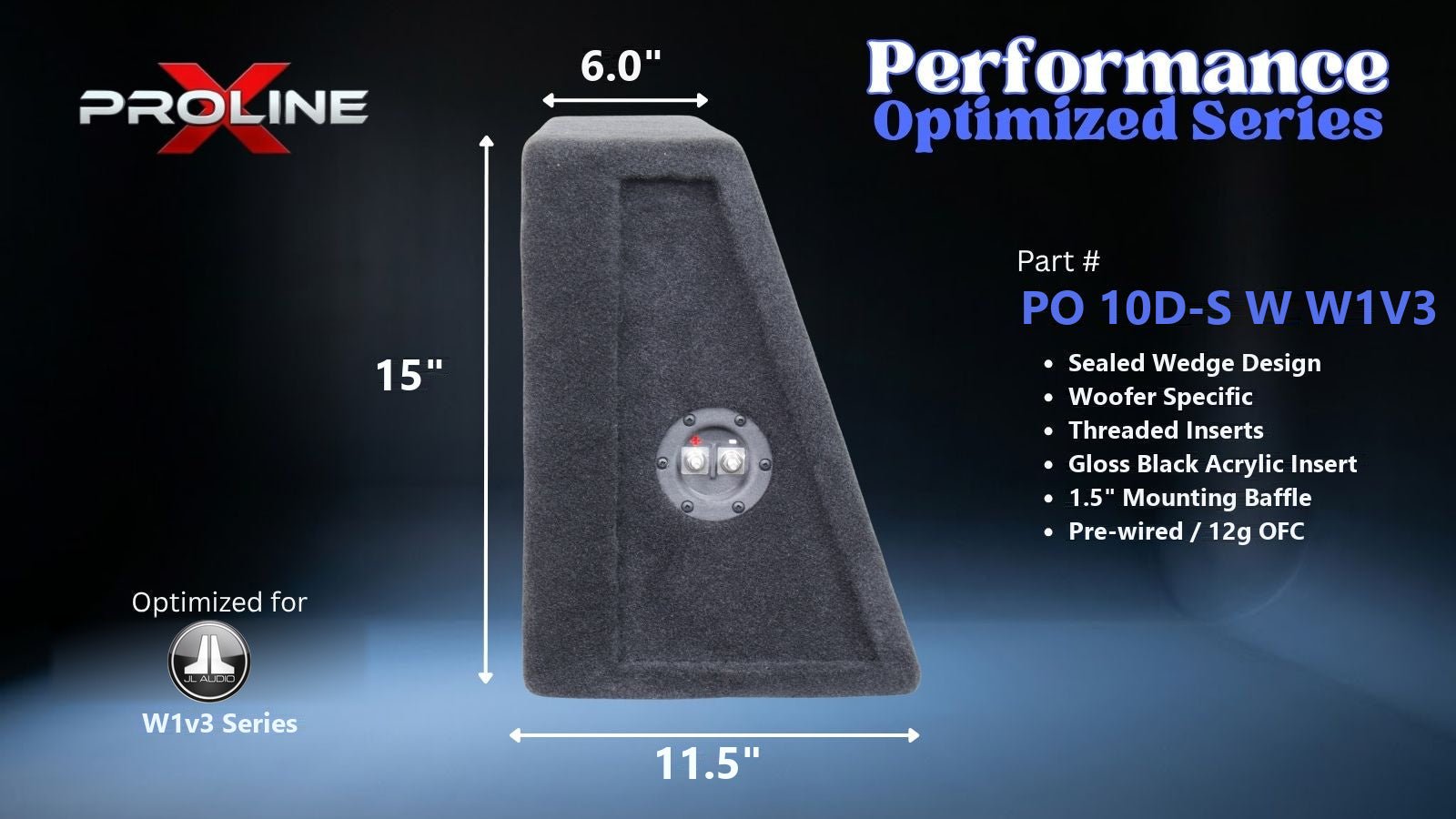

The wedge shape sits against the rear seat back and fires into the trunk, leaving the floor in front of it free.
Listed construction: 3/4-inch MDF, with a doubled 1.5-inch front baffle, dado and V-groove panel joints, black carpet, polyfill installed, pre-wired terminal cup.
Your subwoofer's mounting depth needs to be 4.6 inches or less. Each driver gets its own sealed chamber. Send us your subwoofer model and we will check it against this box before you order.
Questions about fit? Call or text (785) 430-0822.
Box specifications
| Type | Sealed |
|---|---|
| Drivers | Dual, 10-inch |
| Net volume | 0.55 cu ft |
| System Qtc | 0.85 |
| F3 (anechoic) | 42.3 Hz |
| Max mounting depth | 4.6 in |

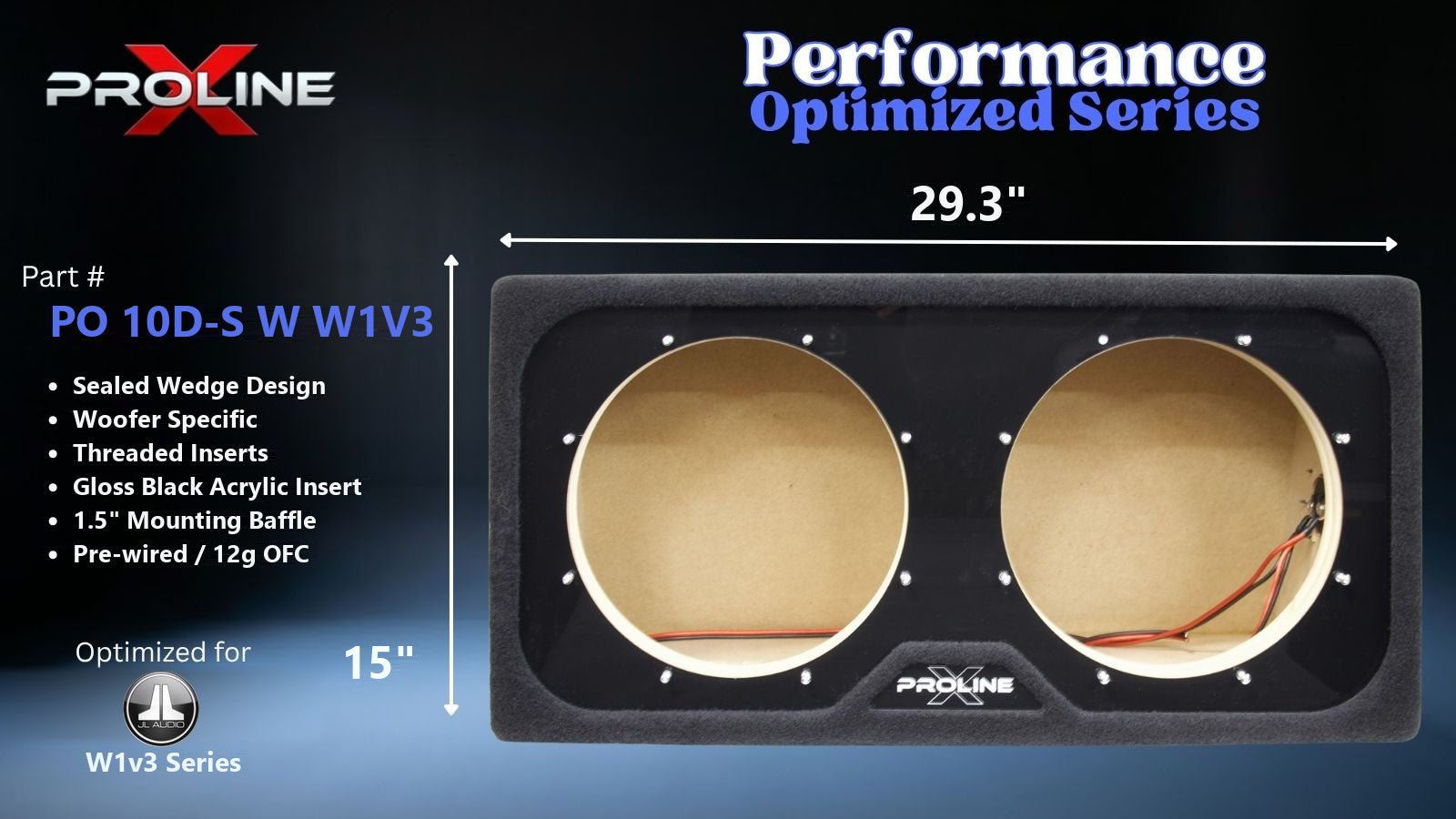

| Width | 29.29 in |
| Depth | 6.04 in |
| Baffle | Double, 1.5 in |
| Chambers | One per driver |
| Made for | JL Audio 10W1v3 |
