Image Dynamics IDMAX10 V4 Ported Wedge Enclosure, Single 10″
$369.99
Ported box for a single 10-inch subwoofer, made for the Image Dynamics IDMAX10 V4: 1.37 cu ft net, tuned 34 Hz, up to 7.6 in mounting depth.
Image Dynamics IDMAX10 V4 Port...
$369.99

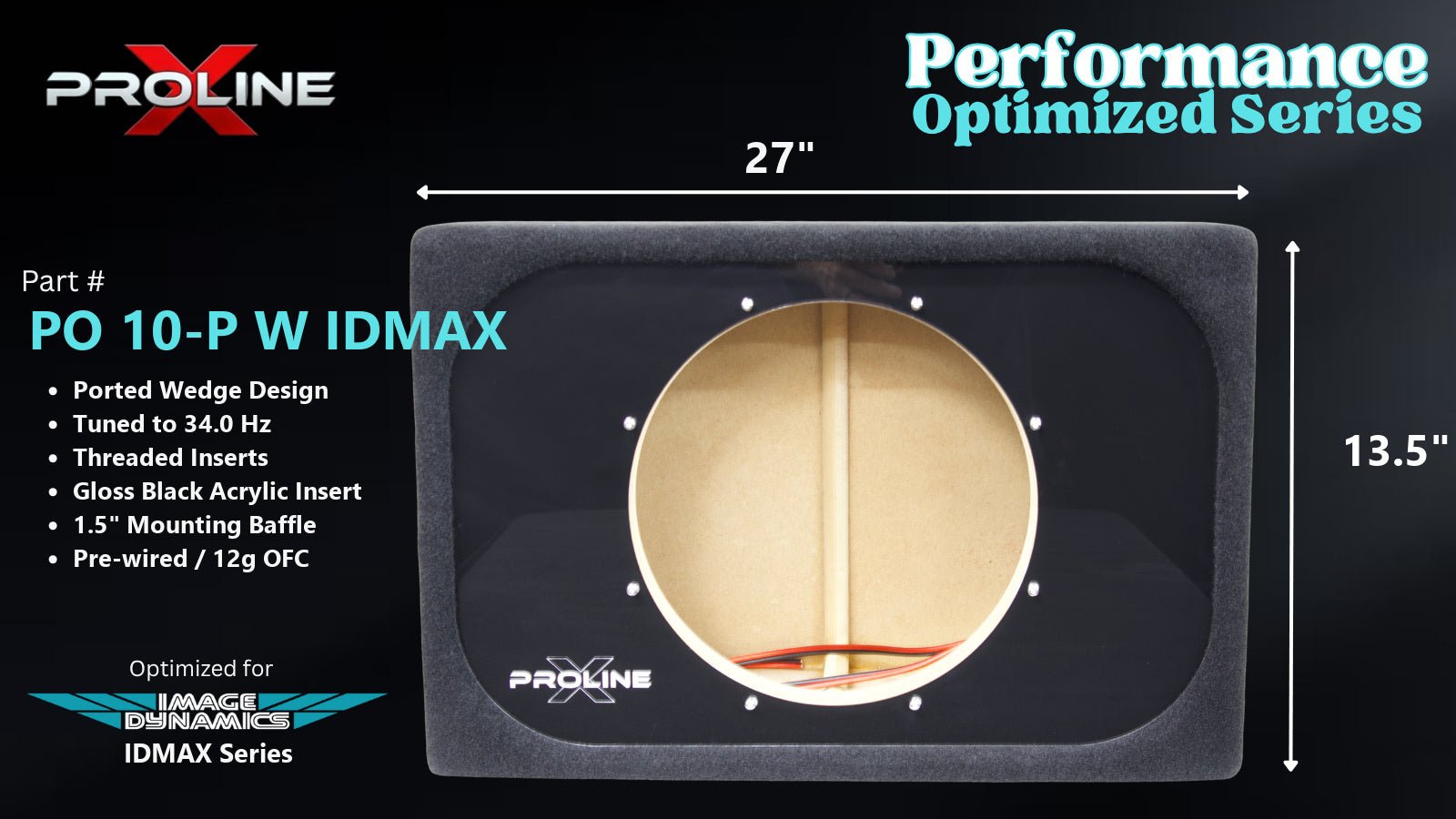

Image Dynamics IDMAX10 V4 ported wedge enclosure for a single 10-inch driver: 1.37 cu ft net, tuned to 34 Hz, 16.9 sq in of port, F3 29.1 Hz.
Around 34 Hz the port does most of the work and output climbs several decibels over the same driver sealed. Below 34 Hz the cone is no longer loaded, so set a subsonic filter a few hertz under it.
With 16.9 square inches of port, air speed stays low enough that the port should stay quiet at high volume.
The wedge shape sits against the rear seat back and fires into the trunk, leaving the floor in front of it free.
Listed construction: 3/4-inch MDF, with a doubled 1.5-inch front baffle, dado and V-groove panel joints, polyfill installed, terminal cup.
Your subwoofer's mounting depth needs to be 7.6 inches or less. The published figures assume the dual 2 ohm versions of the driver. Send us your subwoofer model and we will check it against this box before you order.
Questions about fit? Call or text (785) 430-0822.
Box specifications
| Type | Ported |
|---|---|
| Drivers | Single, 10-inch |
| Net volume | 1.37 cu ft |
| Tuning | 34 Hz |
| Port area | 16.9 sq in |
| F3 (anechoic) | 29.1 Hz |
| Max mounting depth | 7.6 in |
| Height | 8.1 in |
| Width | 27 in |
| Baffle | Double, 1.5 in |
| Made for | Image Dynamics IDMAX10 V4 |
