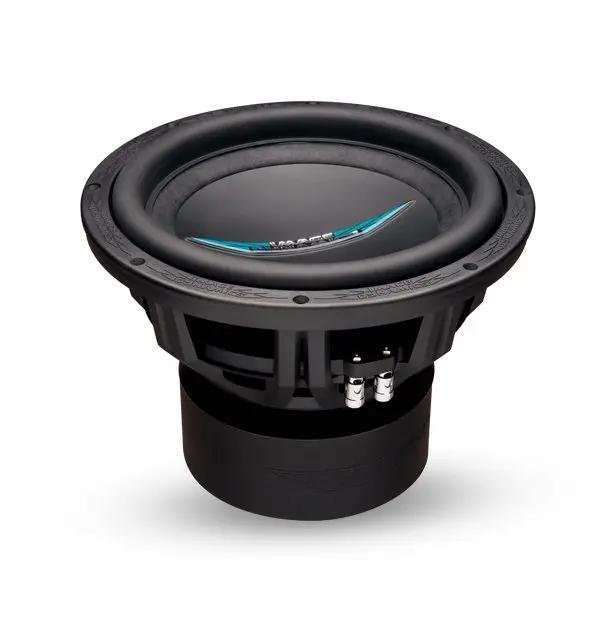

Image Dynamics IDMAX10 V4 10 inch Subwoofer
$429.99
10-inch subwoofer, 500 W RMS.
Check the matchTell us your subwoofer model and vehicle before you order and we confirm the box suits the sub's specs and your space. Ask us.
ShippingWe ship to addresses in the United States. Enclosures go parcel or freight depending on size, and the carrier, cost and timeline are confirmed with you before your order ships. Shipping policy.
WarrantySubwoofers carry their manufacturer's warranty. For enclosures, tell us about any problem and we will confirm what is covered for your build. Warranty.
Image Dynamics IDMAX10 V4 10 i...
$429.99
Image Dynamics IDMAX10 V4 10 inch Subwoofer: a 10-inch subwoofer rated for 500 watts RMS.
From the maker's spec sheet: Fs 27 Hz, Qts 0.609, Vas 37.18 L, Xmax 19 mm. A box is designed from these numbers, and the right box is what turns the rated power into clean bass.
Recommended enclosure: 2 cubic feet ported. Want a box made to that volume for your vehicle? Start a custom order with this model number.
Choose the amplifier by the RMS rating at the final impedance you will wire to, and leave the peak figure out of the maths.
Choose Dual 2 ohm or Dual 4 ohm in the order notes.
Questions about fit? Call or text (785) 430-0822.
Listed specifications
- 500W RMS 1000W Peak 400 oz Motor 27 Hz Fs
- 27 Hz Resonant Freq
- 500W RMS Power
- 27 Hz Fs and Deep Bass Extension
- D2: Dual 2 Ohm | Qts 0.609 | Fs 27 Hz | Vas 37.18 L
