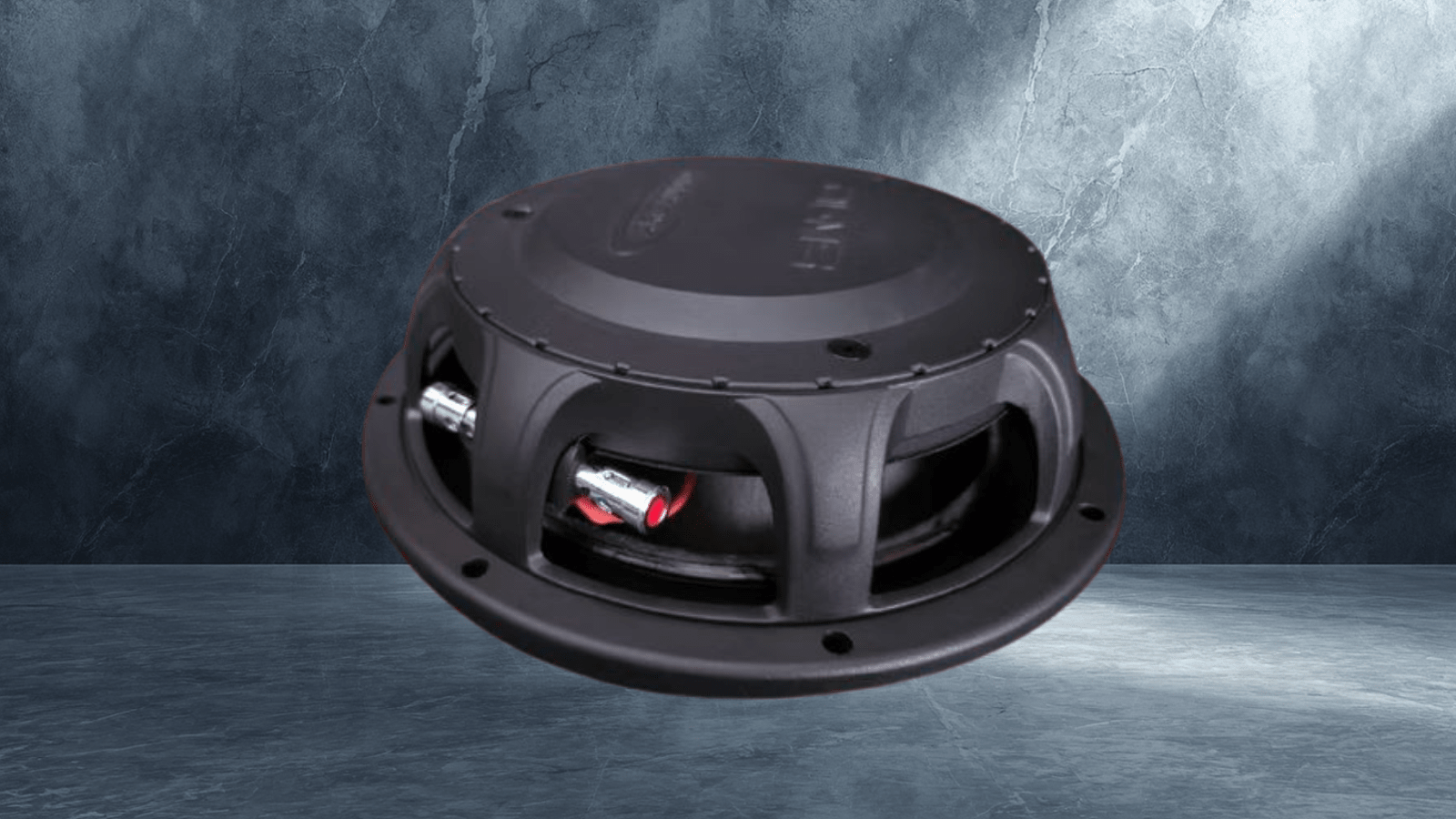

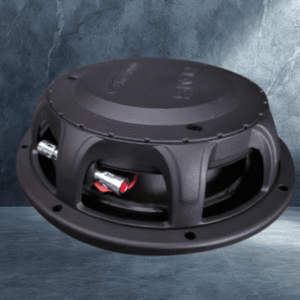

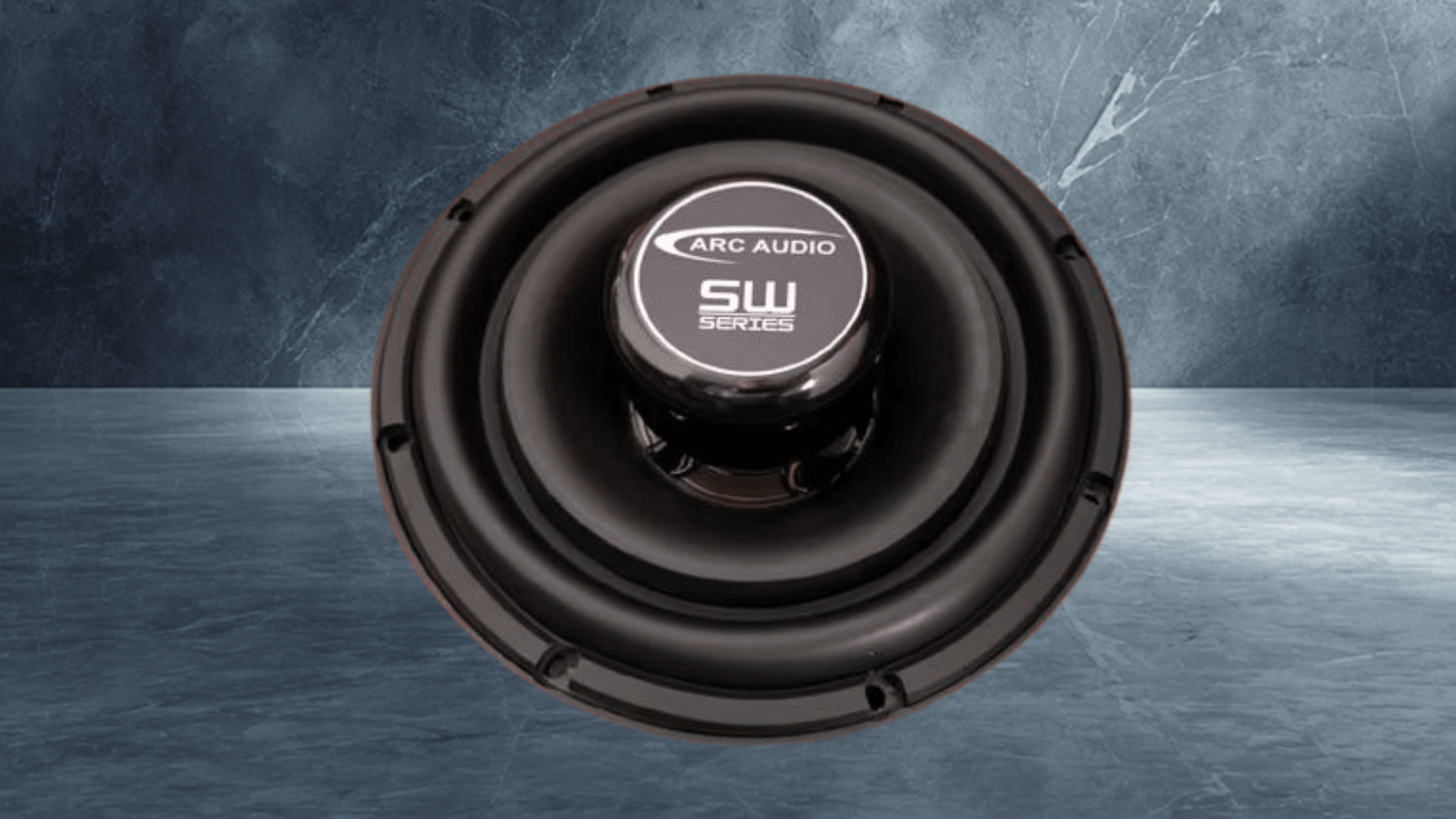

Arc Audio SW12 12 Inch Shallow-Mount Subwoofer
$629.99
12-inch subwoofer, 400 W RMS, 0.8 cu ft sealed.
Check the matchTell us your subwoofer model and vehicle before you order and we confirm the box suits the sub's specs and your space. Ask us.
ShippingWe ship to addresses in the United States, and local pickup in Clarksville, Arkansas can be arranged. Enclosures go parcel or freight depending on size, and the carrier, cost and timeline are confirmed with you before your order ships. Shipping policy.
WarrantySubwoofers carry their manufacturer's warranty. For enclosures, tell us about any problem and we will confirm what is covered for your build. Warranty.
Arc Audio SW12 12 Inch Shallow...
$629.99
Arc Audio SW12 12 Inch Shallow-Mount Subwoofer: a 12-inch subwoofer rated for 400 watts RMS.
From the maker's spec sheet: Fs 33 Hz, Qts 0.616, Vas 33.73 L, Xmax 15.5 mm. These are the figures we design a box around, together with the space you have.
Recommended enclosure: 0.8 cubic feet sealed. For a box sized to that figure and shaped to your vehicle, send this model in a custom order.
Match the amplifier to RMS power at the impedance the coils will present; peak power is not a number to plan around.
Choose Dual 4ohm or Dual 2ohm in the order notes.
Questions about fit? Message us on WhatsApp.
Listed specifications
- A real 12-inch SQ driver in 2.625 inches of mounting depth
- 2.625" Mounting Depth 15.5mm Xmax 400W RMS Neo Motor D2 or D4
- 400 / 800 watts RMS / peak
- A Full 12 in 2.625 Inches
- Stage-Baked 3-Inch Coil
- SW12 D4 (Parallel) | Qts 0.616 | Fs 33 Hz | Vas 33.73 L
