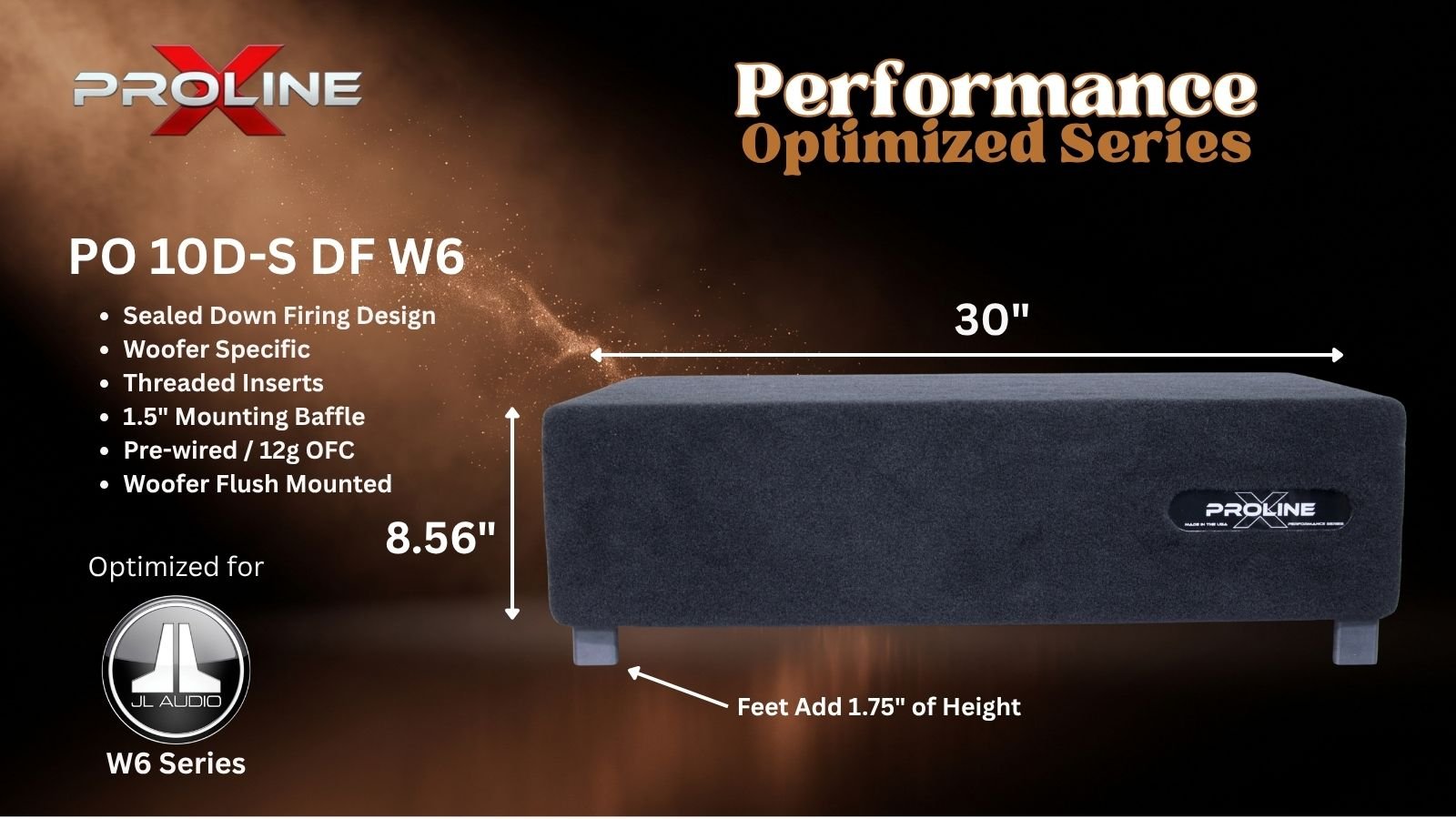

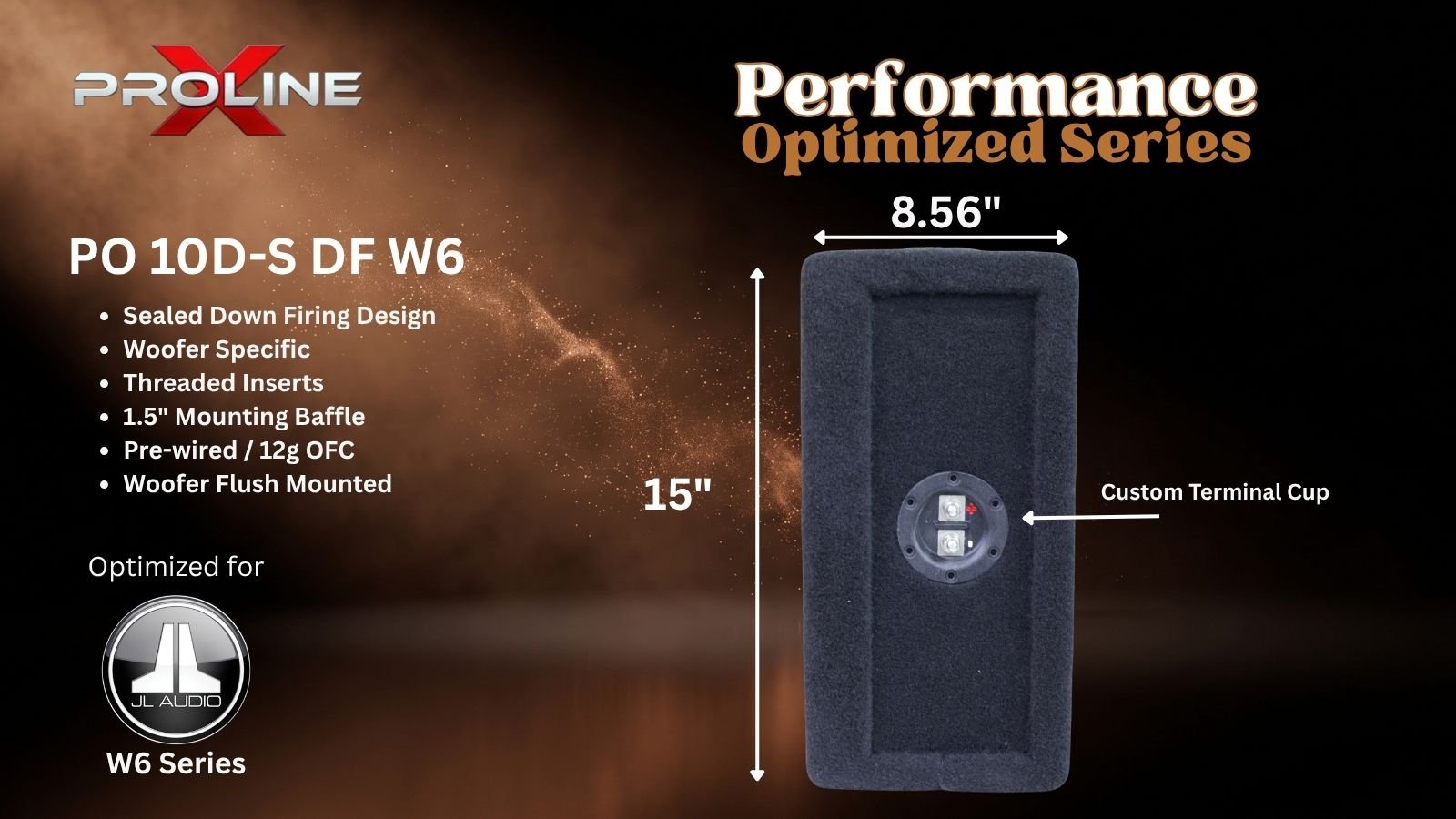

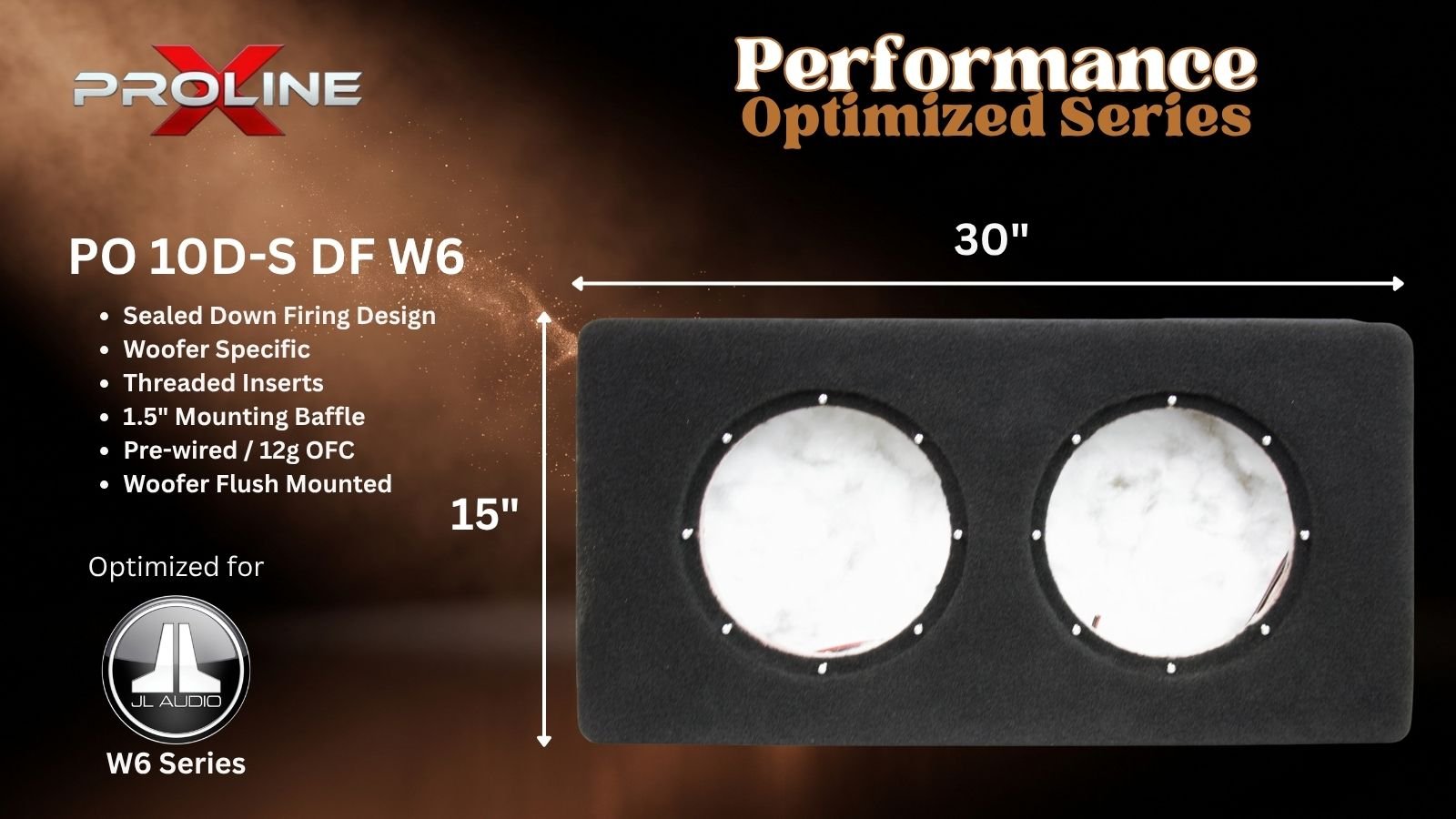

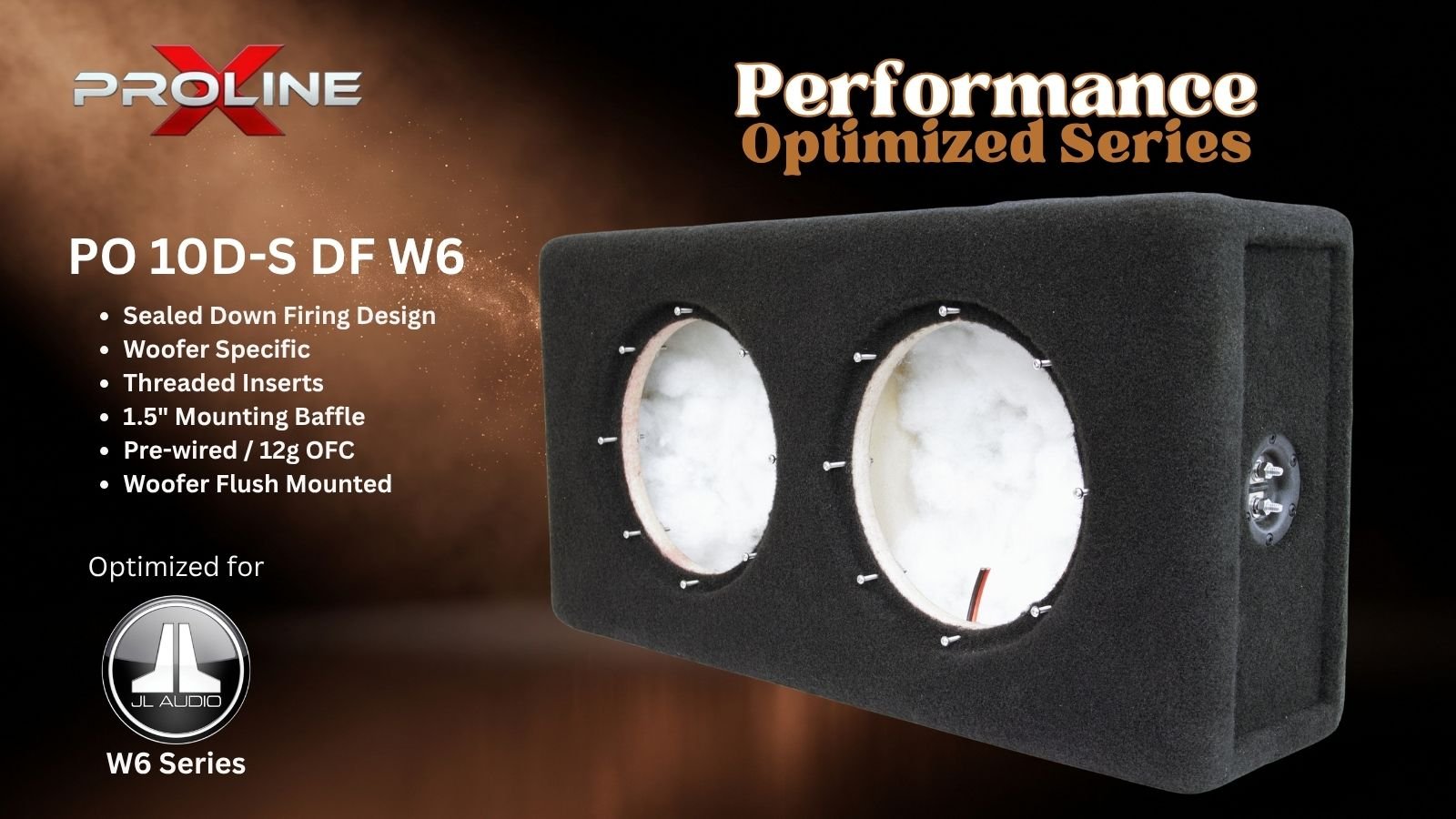

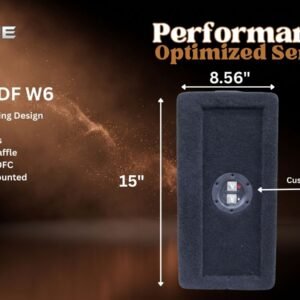

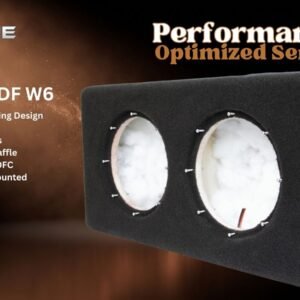

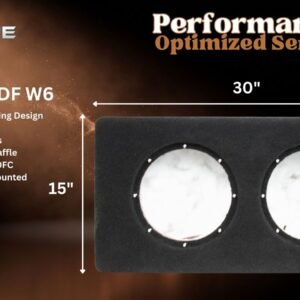

JL Audio 10W6v3 Sealed Down Fire Enclosure, Dual 10″
$309.99
Sealed box for a dual 10-inch subwoofer, made for the JL Audio 10W6v3: 1.16 cu ft net, Qtc 0.797, up to 6.89 in mounting depth.
JL Audio 10W6v3 Sealed Down Fi...
$309.99
JL Audio 10W6v3 sealed down fire enclosure for a dual 10-inch driver: 1.16 cu ft net, Qtc 0.797, F3 42.1 Hz.
At Qtc 0.797 there is a small rise just above the roll-off, which most people hear as punch on kick drums without the box getting bigger.
Firing into the floor adds boundary loading, so in the vehicle it plays deeper than the anechoic figure suggests.
The driver faces the floor, so luggage cannot reach the cone and the top stays flat for cargo.
Listed construction: 3/4-inch MDF, with a doubled 1.5-inch front baffle, dado and V-groove panel joints, black carpet, polyfill installed, pre-wired terminal cup.
Your subwoofer's mounting depth needs to be 6.89 inches or less. Each driver gets its own sealed chamber. The published figures assume the dual 4 ohm versions of the driver. Send us your subwoofer model and we will check it against this box before you order.
Questions about fit? Message us on WhatsApp.
Box specifications
| Type | Sealed |
|---|---|
| Drivers | Dual, 10-inch |
| Net volume | 1.16 cu ft |
| System Qtc | 0.797 |
| F3 (anechoic) | 42.1 Hz |
| Max mounting depth | 6.89 in |
| Height | 8.5625 in |
| Width | 30 in |
| Depth | 15 in |
| Baffle | Double, 1.5 in |
| Chambers | One per driver |
| Made for | JL Audio 10W6v3 |
