JL Audio 10W6v3 Ported Down Fire Enclosure, Single 10″
$309.99

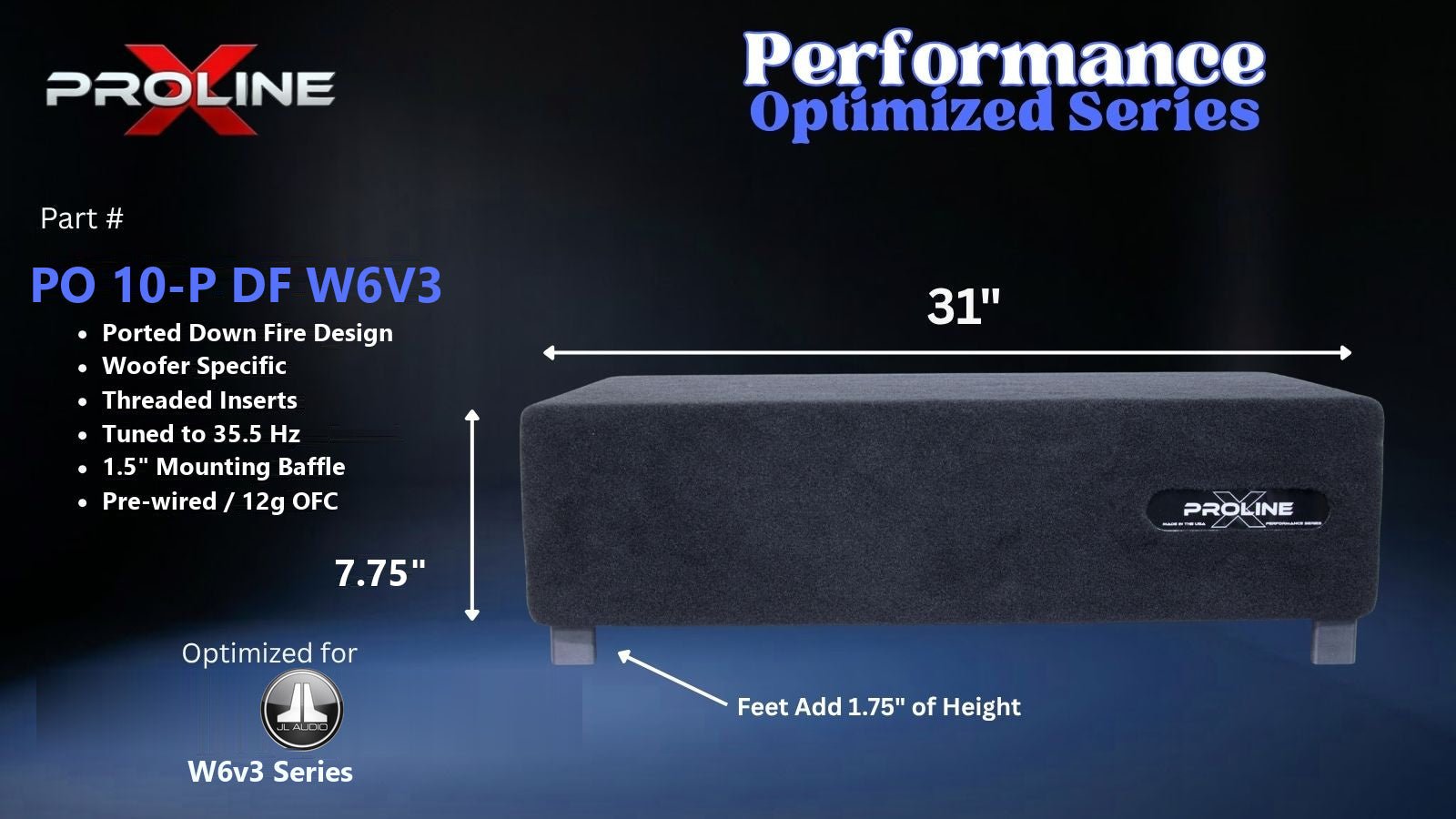

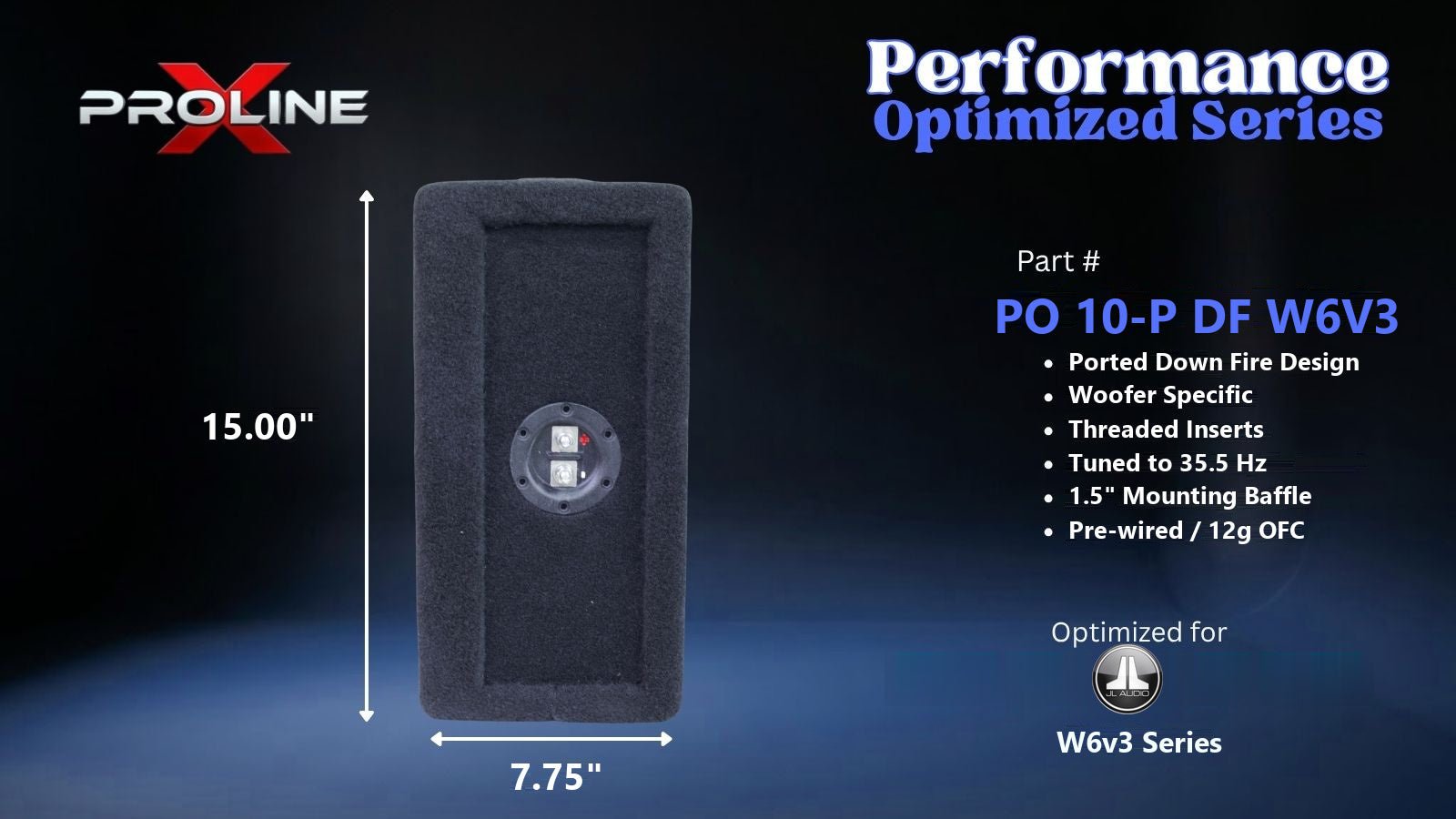

Ported box for a single 10-inch subwoofer, made for the JL Audio 10W6v3: 1.22 cu ft net, tuned 35.5 Hz.
JL Audio 10W6v3 Ported Down Fi...
$309.99
JL Audio 10W6v3 ported down fire enclosure for a single 10-inch driver: 1.22 cu ft net, tuned to 35.5 Hz, 20.3 sq in of port, F3 29.8 Hz.
The 35.5 Hz tuning is where this box is loudest per watt. Protect the subwoofer with a subsonic filter set 5 to 10 Hz below that number, because the port stops controlling the cone under tuning.
20.3 square inches of port area keeps port noise down when the system is pushed.
Down-firing keeps the cone protected and leaves a flat top you can load.
Listed construction: 3/4-inch MDF, with a doubled 1.5-inch front baffle, dado and V-groove panel joints, polyfill installed, terminal cup.
The published figures assume the dual 2 ohm versions of the driver. Tell us which subwoofer you run and we will confirm the match first.
Questions about fit? Call or text (785) 430-0822.
Box specifications
| Type | Ported |
|---|---|
| Drivers | Single, 10-inch |
| Net volume | 1.22 cu ft |
| Tuning | 35.5 Hz |
| Port area | 20.3 sq in |
| F3 (anechoic) | 29.8 Hz |
| Height | 20.3 in |
| Baffle | Double, 1.5 in |
| Made for | JL Audio 10W6v3 |
