JL Audio 10W3v3 Sealed Wedge Enclosure, Dual 10″
$339.99
Sealed box for a dual 10-inch subwoofer, made for the JL Audio 10W3v3: 0.625 cu ft net, Qtc 0.82, up to 7.39 in mounting depth.
JL Audio 10W3v3 Sealed Wedge E...
$339.99
JL Audio 10W3v3 dual sealed wedge enclosure for a 10-inch driver: 0.625 cu ft net, Qtc 0.82.
At Qtc 0.82 there is a small rise just above the roll-off, which most people hear as punch on kick drums without the box getting bigger.
The wedge shape sits against the rear seat back and fires into the trunk, leaving the floor in front of it free.
Listed construction: 3/4-inch MDF, with a doubled 1.5-inch front baffle, dado and V-groove panel joints, black carpet, polyfill installed, terminal cup.
Your subwoofer's mounting depth needs to be 7.39 inches or less. Both drivers share one chamber, so use a matched pair wired to the same final impedance. Send us your subwoofer model and we will check it against this box before you order.
Questions about fit? Message us on WhatsApp.

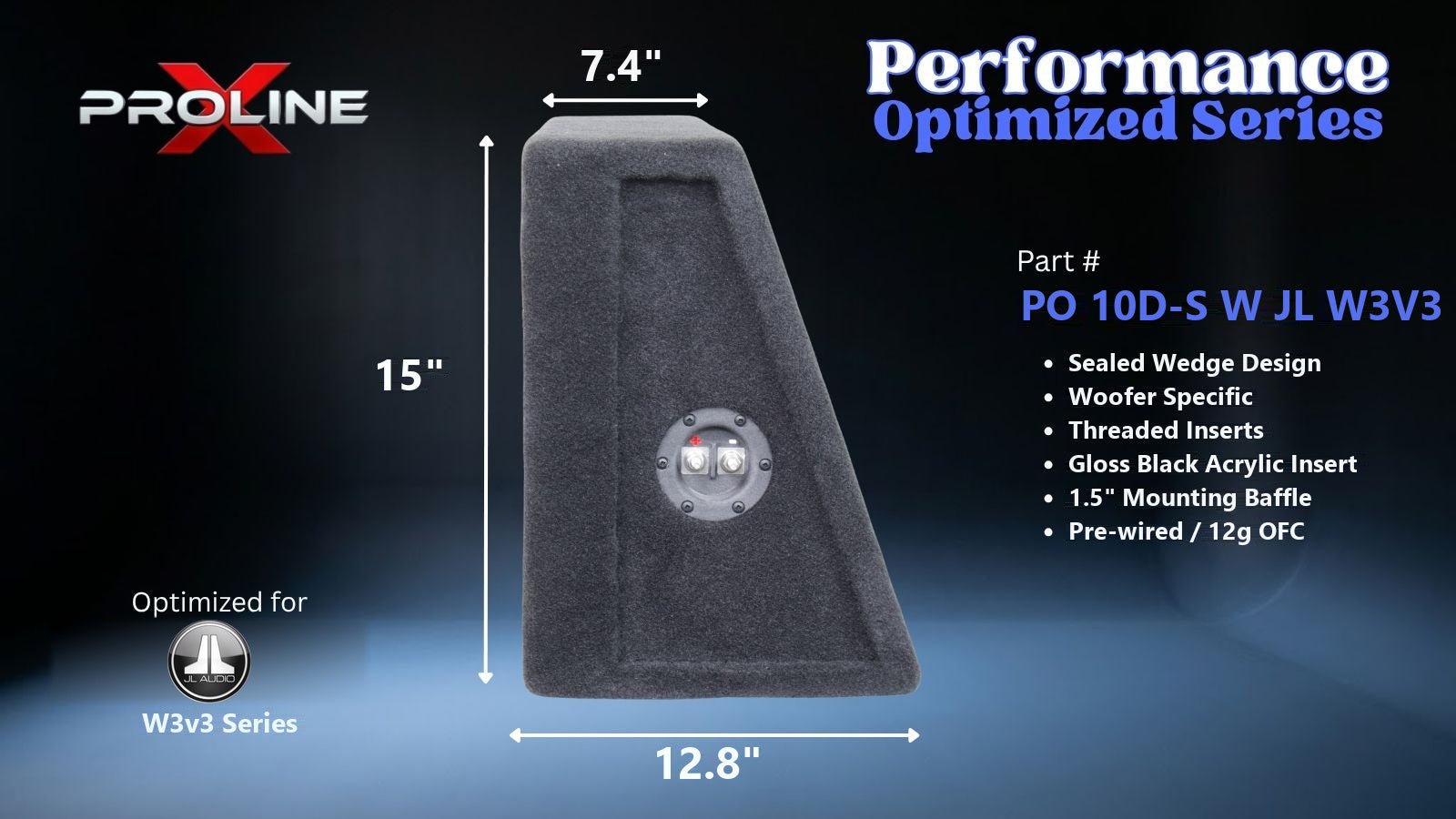

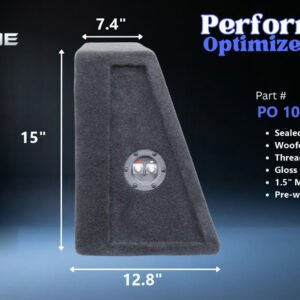

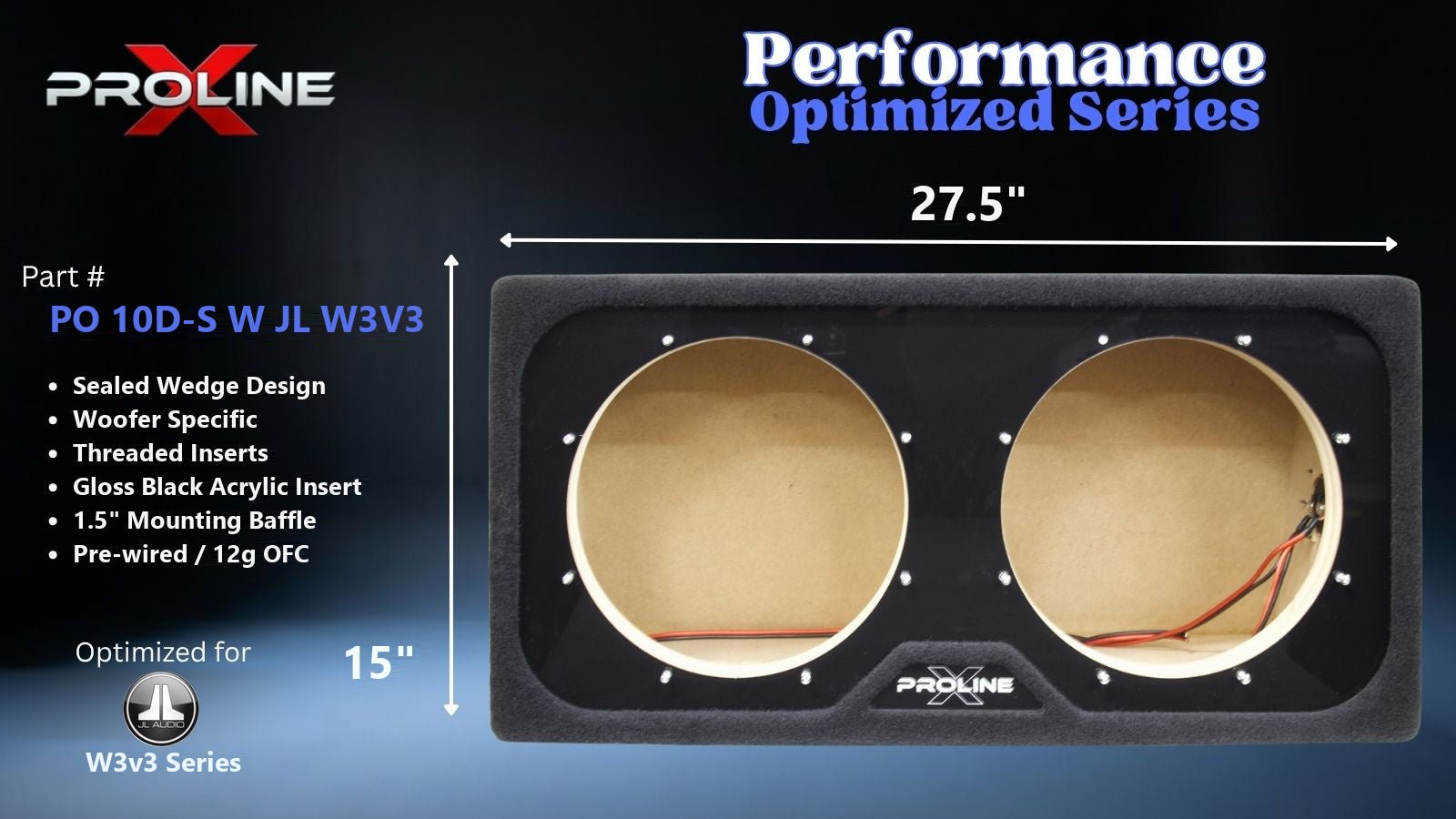

Box specifications
| Type | Sealed |
|---|---|
| Drivers | Dual, 10-inch |
| Net volume | 0.625 cu ft |
| System Qtc | 0.82 |
| Max mounting depth | 7.39 in |
| Height | 15 in |
| Width | 27.5 in |
| Baffle | Double, 1.5 in |
| Chambers | Shared |
| Made for | JL Audio 10W3v3 |
