JL Audio 10TW3 Sealed Shallow Down Fire Wide Enclosure, Dual 10″
$379.99
Sealed box for a dual 10-inch subwoofer, made for the JL Audio 10TW3: 0.504 cu ft net, Qtc 0.958, up to 3.25 in mounting depth.
JL Audio 10TW3 Sealed Shallow ...
$379.99
JL Audio 10TW3 dual sealed shallow down fire wide enclosure for a 10-inch driver: 0.504 cu ft net, Qtc 0.958, F3 40 Hz.
At Qtc 0.958 the box trades some low extension for a small footprint and a punchy upper bass. Cabin gain in a truck or trunk helps fill in below it.
Firing into the floor adds boundary loading, so in the vehicle it plays deeper than the anechoic figure suggests.
Down-firing keeps the cone protected and leaves a flat top you can load. The wide footprint spreads the volume across the trunk to keep the box shallow. It is built shallow for tight spaces, so check the mounting depth figure below against your driver.
Listed construction: 3/4-inch MDF, with a doubled 1.5-inch front baffle, dado and V-groove panel joints, black carpet, polyfill installed, pre-wired terminal cup.
Your subwoofer's mounting depth needs to be 3.25 inches or less. Each driver gets its own sealed chamber. Tell us which subwoofer you run and we will confirm the match first.
Questions about fit? Message us on WhatsApp.
Box specifications
| Type | Sealed |
|---|---|
| Drivers | Dual, 10-inch |
| Net volume | 0.504 cu ft |
| System Qtc | 0.958 |
| F3 (anechoic) | 40 Hz |
| Max mounting depth | 3.25 in |

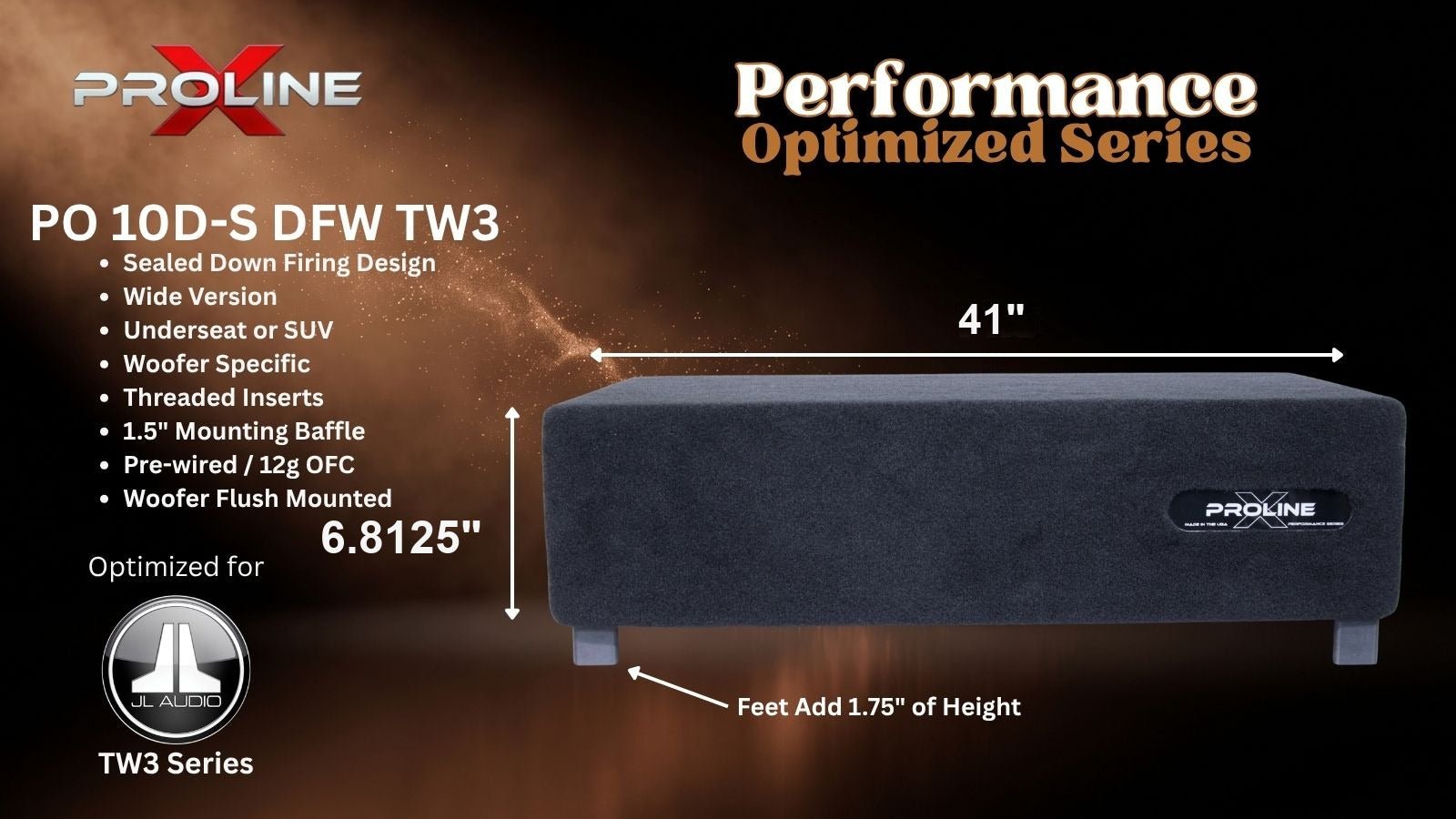

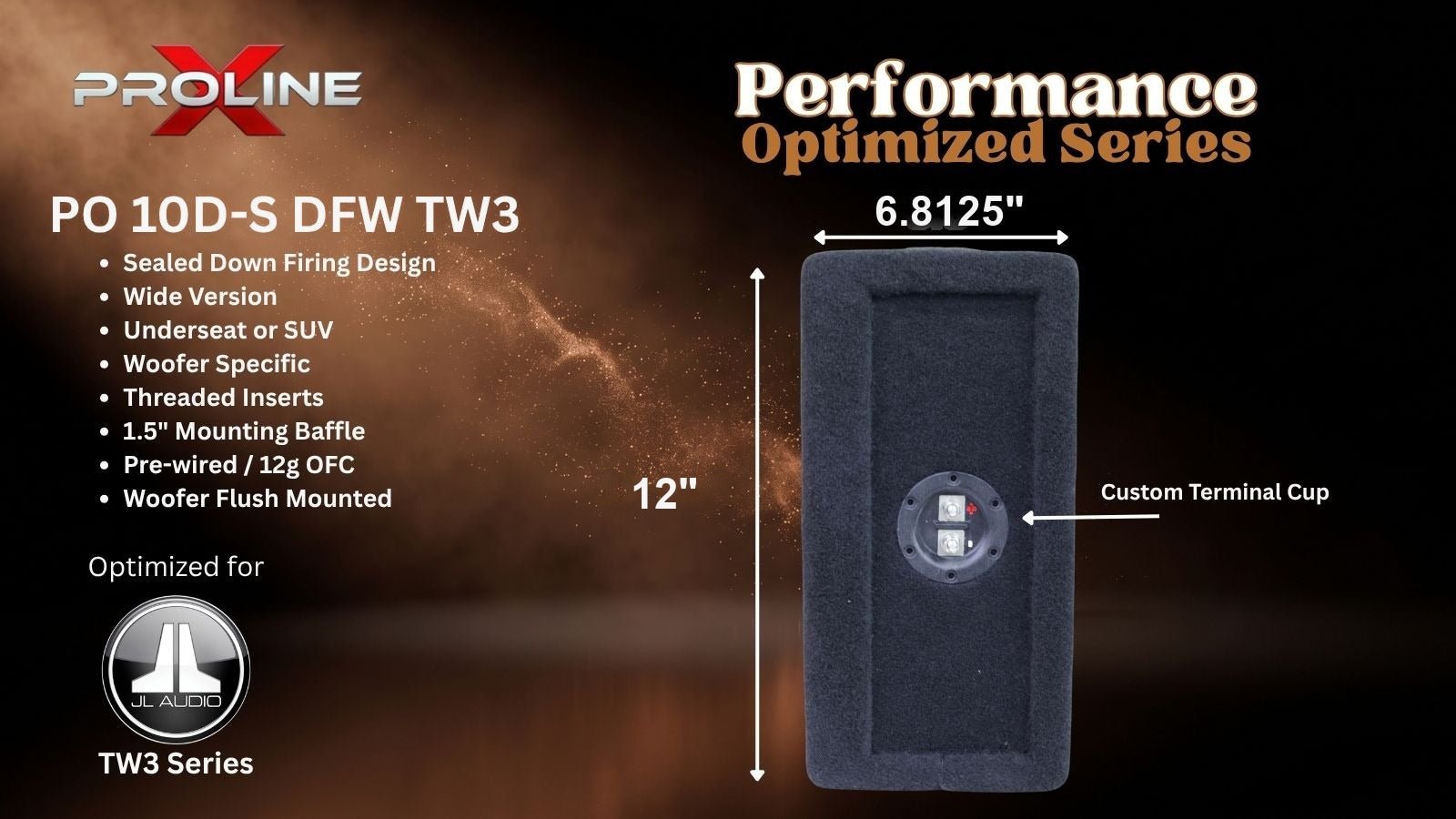

| Height | 6.8125 in |
| Width | 41 in |
| Depth | 12 in |
| Baffle | Double, 1.5 in |
| Chambers | One per driver |
| Made for | JL Audio 10TW3 |
