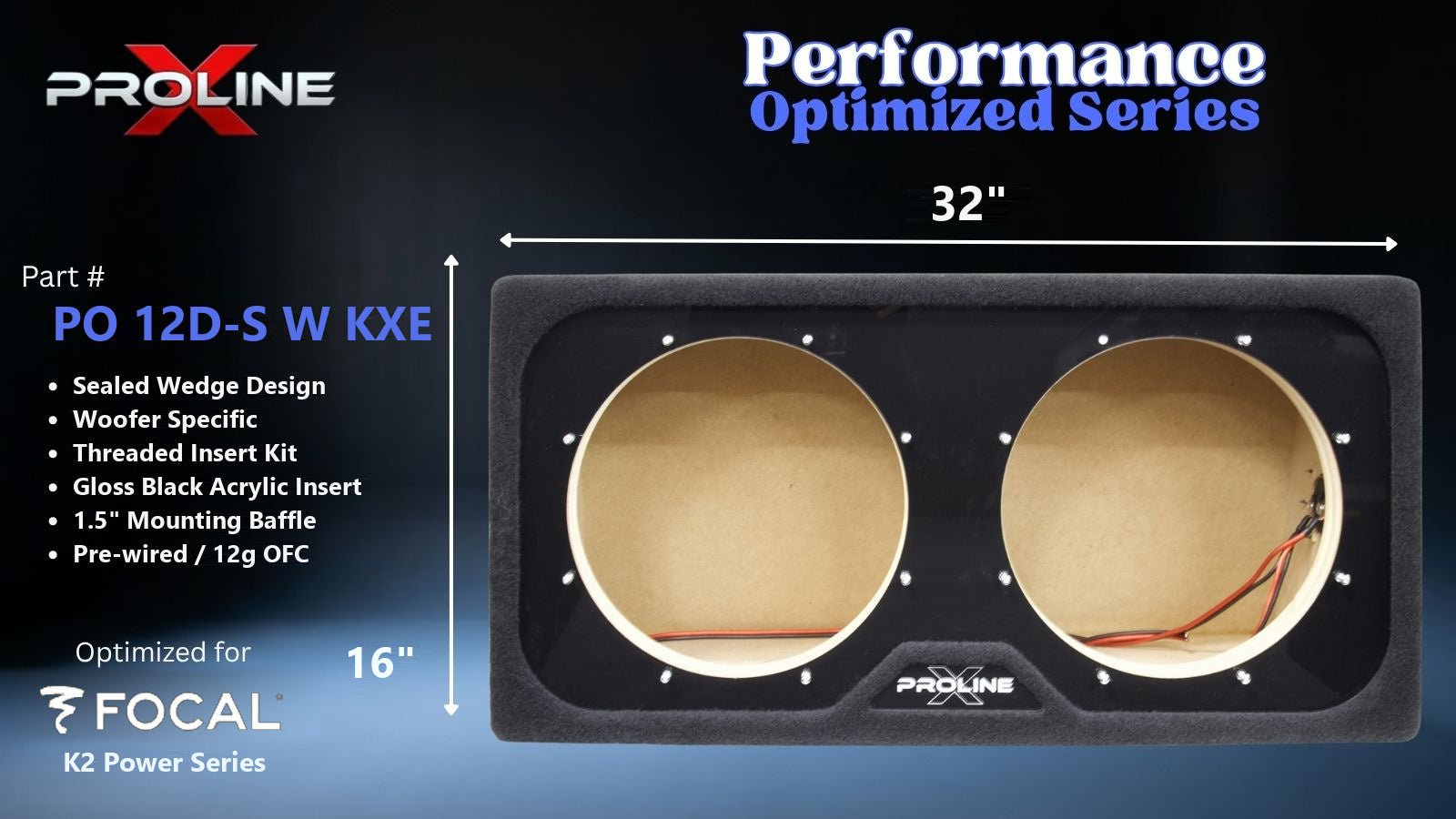

Focal SUB 30 KXE Sealed Wedge Enclosure, Dual 12″
$389.99
Sealed box for a dual 12-inch subwoofer, made for the Focal SUB 30 KXE: 1.25 cu ft net, Qtc 0.71, up to 6.77 in mounting depth.
Focal SUB 30 KXE Sealed Wedge ...
$389.99
Focal SUB 30 KXE dual sealed wedge enclosure for a 12-inch driver: 1.25 cu ft net, Qtc 0.71, F3 44.6 Hz.
That Qtc sits right at the textbook sealed target: flat to the corner frequency, then a slow roll-off that the cabin of a car or truck largely makes up.

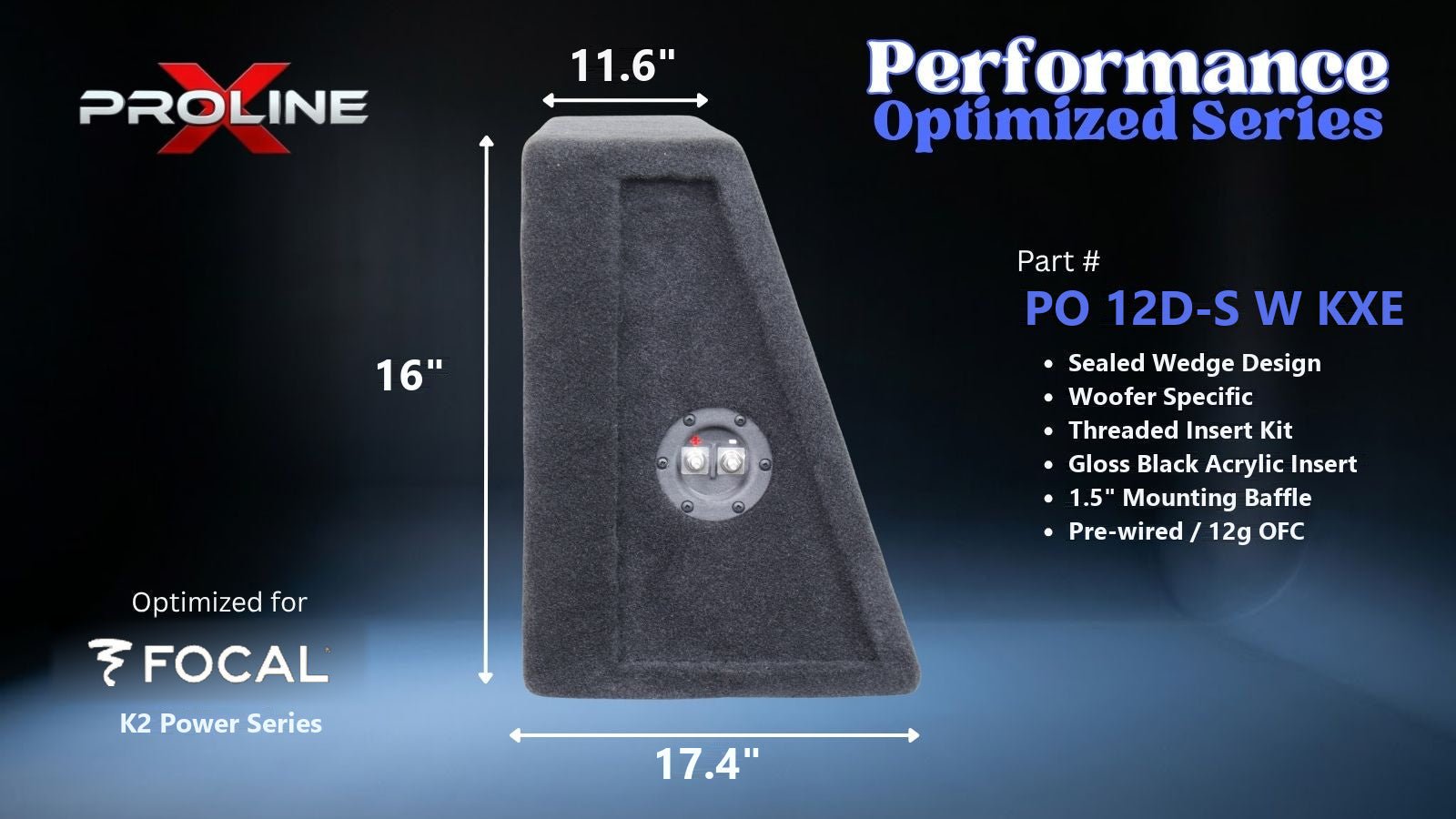

The wedge shape sits against the rear seat back and fires into the trunk, leaving the floor in front of it free.
Listed construction: 3/4-inch MDF, with a doubled 1.5-inch front baffle, dado and V-groove panel joints, black carpet, polyfill installed, pre-wired terminal cup.
Your subwoofer's mounting depth needs to be 6.77 inches or less. Each driver gets its own sealed chamber. The published figures assume the dual 4 ohm versions of the driver. Send us your subwoofer model and we will check it against this box before you order.
Questions about fit? Call or text (785) 430-0822.
Box specifications
| Type | Sealed |
|---|---|
| Drivers | Dual, 12-inch |
| Net volume | 1.25 cu ft |
| System Qtc | 0.71 |
| F3 (anechoic) | 44.6 Hz |
| Max mounting depth | 6.77 in |
| Height | 16 in |
| Depth | 11.62 in |
| Baffle | Double, 1.5 in |
| Chambers | One per driver |
| Made for | Focal SUB 30 KXE |
