Dayton Audio Ultimax II UMII15 Ported Wedge Enclosure, Single 15″
$499.99
Ported box for a single 15-inch subwoofer, made for the Dayton Audio Ultimax II UMII15: 2.42 cu ft net, tuned 30 Hz, up to 8.11 in mounting depth.
Dayton Audio Ultimax II UMII15...
$499.99

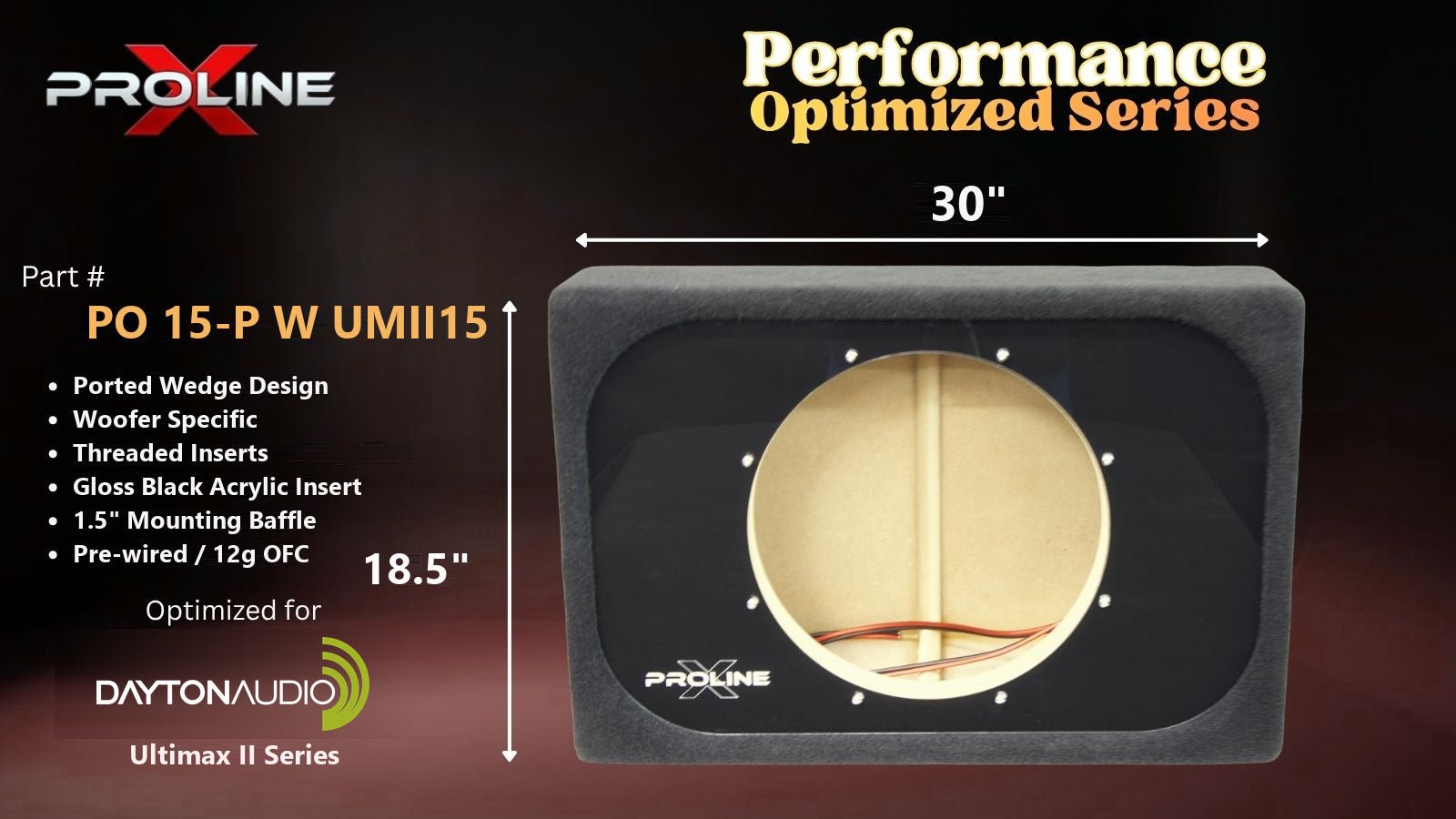

Dayton Audio Ultimax II UMII15 ported wedge enclosure for a single 15-inch driver: 2.42 cu ft net, tuned to 30 Hz, 26.4 sq in of port, F3 33.5 Hz.
The 30 Hz tuning is where this box is loudest per watt. Protect the subwoofer with a subsonic filter set 5 to 10 Hz below that number, because the port stops controlling the cone under tuning.
26.4 square inches of port area keeps port noise down when the system is pushed.

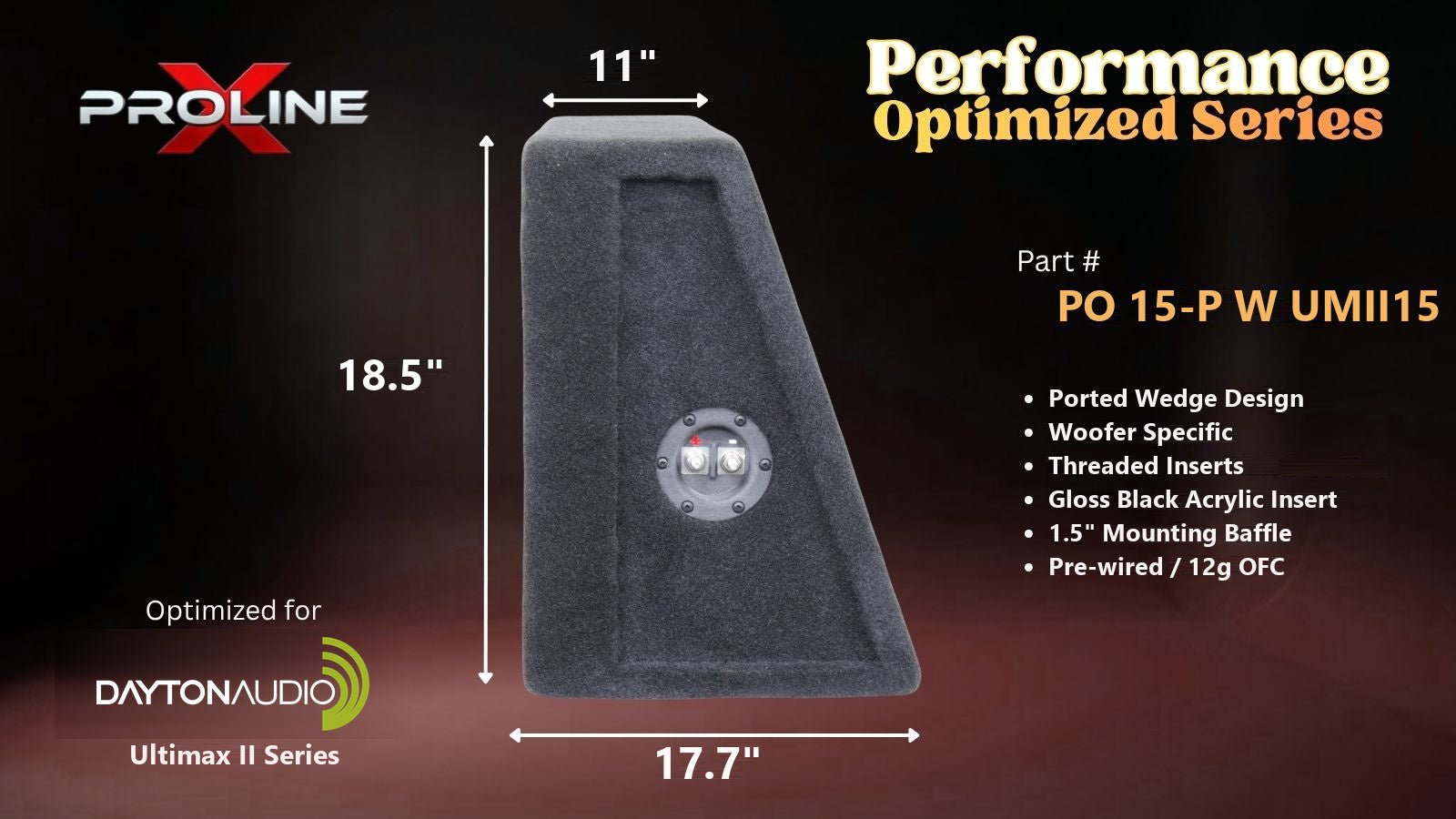

Its angled back matches the seat back; the trunk itself becomes part of the acoustic path.
Listed construction: 3/4-inch MDF, with a doubled 1.5-inch front baffle, dado and V-groove panel joints, polyfill installed, terminal cup.
Your subwoofer's mounting depth needs to be 8.11 inches or less. The published figures assume the dual 2 ohm versions of the driver. Tell us which subwoofer you run and we will confirm the match first.
Questions about fit? Message us on WhatsApp.
Box specifications
| Type | Ported |
|---|---|
| Drivers | Single, 15-inch |
| Net volume | 2.42 cu ft |
| Tuning | 30 Hz |
| Port area | 26.4 sq in |
| F3 (anechoic) | 33.5 Hz |
| Max mounting depth | 8.11 in |
| Height | 11 in |
| Width | 30 in |
| Depth | 11 in |
| Baffle | Double, 1.5 in |
| Made for | Dayton Audio Ultimax II UMII15 |
