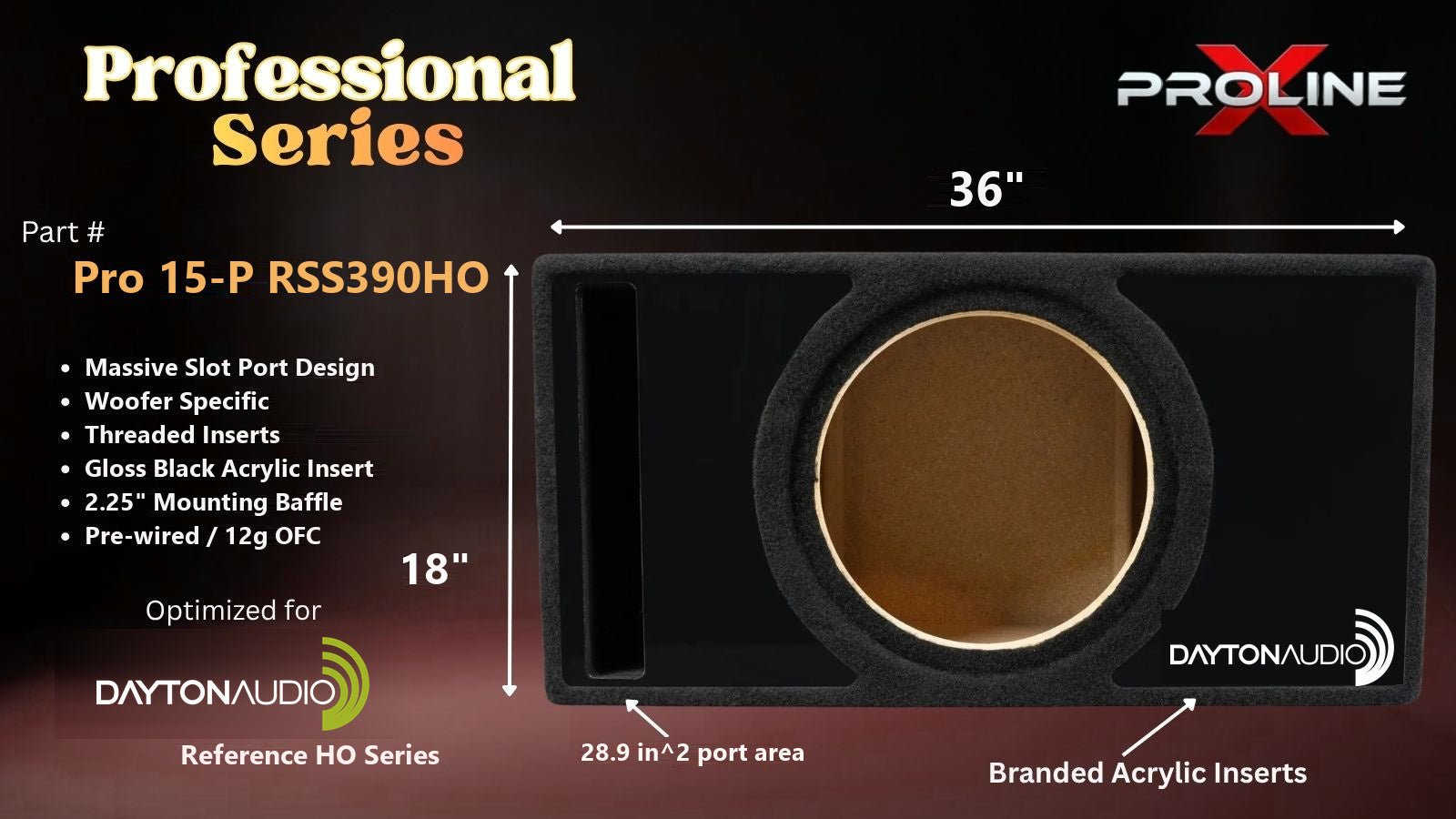

Dayton Audio Reference RSS390HO Ported Enclosure, Single 15″
$507.99
Ported box for a single 15-inch subwoofer, made for the Dayton Audio Reference RSS390HO: 2.02 cu ft net, tuned 31 Hz, up to 7.01 in mounting depth.
Dayton Audio Reference RSS390H...
$507.99
Dayton Audio Reference RSS390HO ported enclosure for a single 15-inch driver: 2.02 cu ft net, tuned to 31 Hz, 28.9 sq in of port, F3 34.3 Hz.
Around 31 Hz the port does most of the work and output climbs several decibels over the same driver sealed. Below 31 Hz the cone is no longer loaded, so set a subsonic filter a few hertz under it.
With 28.9 square inches of port, air speed stays low enough that the port should stay quiet at high volume.
Listed construction: polyfill installed.
Your subwoofer's mounting depth needs to be 7.01 inches or less. Send us your subwoofer model and we will check it against this box before you order.
Questions about fit? Call or text (785) 430-0822.
Box specifications
| Type | Ported |
|---|---|
| Drivers | Single, 15-inch |
| Net volume | 2.02 cu ft |
| Tuning | 31 Hz |
| Port area | 28.9 sq in |
| F3 (anechoic) | 34.3 Hz |
| Max mounting depth | 7.01 in |
| Height | 12 in |
| Width | 36 in |
| Depth | 12 in |
| Baffle | Double, 1.5 in |
| Made for | Dayton Audio Reference RSS390HO |
