Dayton Audio Reference RSS390HF Ported Enclosure, Single 15″
$495.99

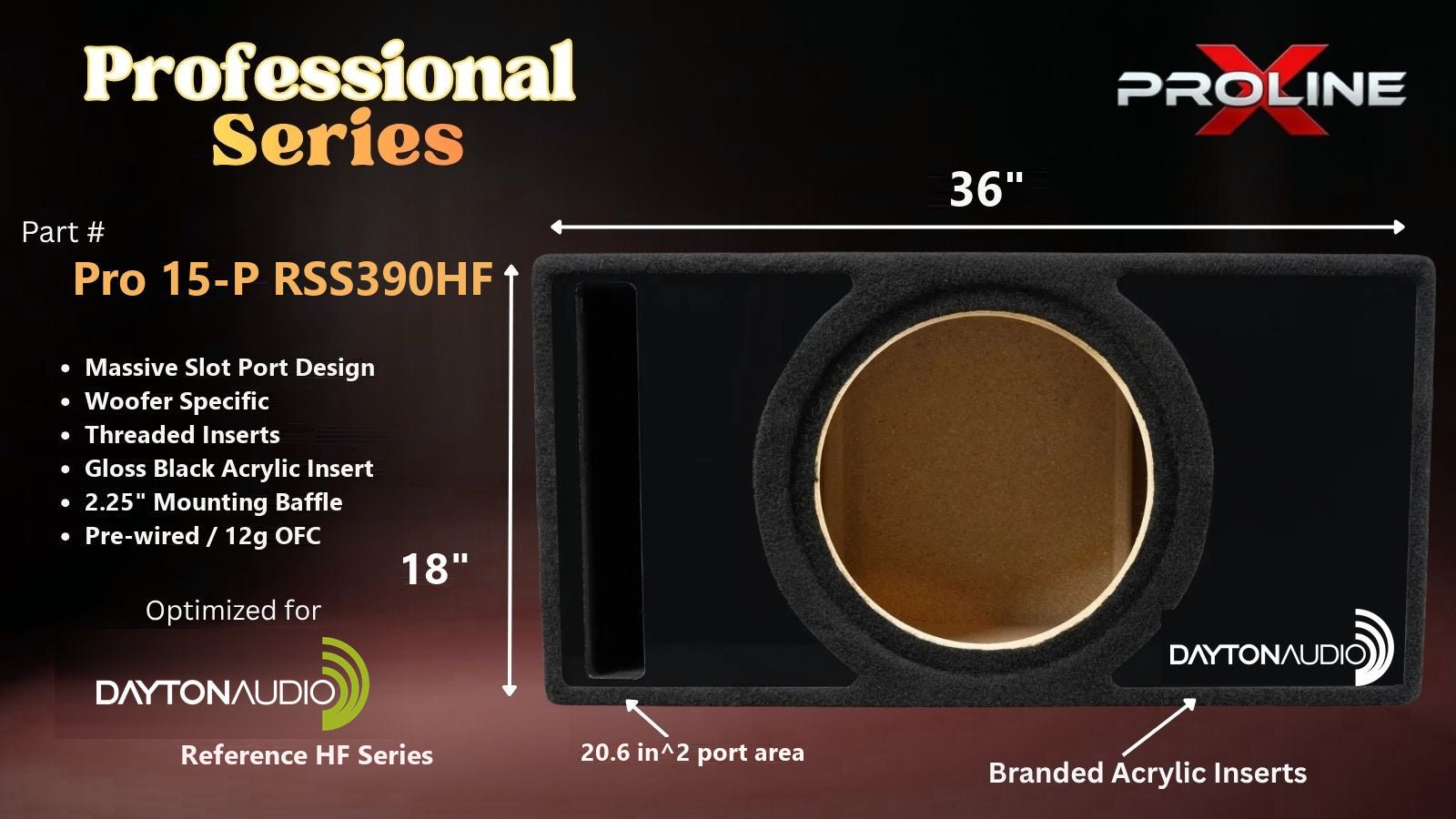

Ported box for a single 15-inch subwoofer, made for the Dayton Audio Reference RSS390HF: 2.06 cu ft net, tuned 27.5 Hz, up to 7.01 in mounting depth.
Dayton Audio Reference RSS390H...
$495.99
Dayton Audio Reference RSS390HF ported enclosure for a single 15-inch driver: 2.06 cu ft net, tuned to 27.5 Hz, 20.6 sq in of port, F3 33.8 Hz.
The 27.5 Hz tuning is where this box is loudest per watt. Protect the subwoofer with a subsonic filter set 5 to 10 Hz below that number, because the port stops controlling the cone under tuning.
20.6 square inches of port area keeps port noise down when the system is pushed.
Listed construction: polyfill installed.
Your subwoofer's mounting depth needs to be 7.01 inches or less. Tell us which subwoofer you run and we will confirm the match first.
Questions about fit? Call or text (785) 430-0822.
Box specifications
| Type | Ported |
|---|---|
| Drivers | Single, 15-inch |
| Net volume | 2.06 cu ft |
| Tuning | 27.5 Hz |
| Port area | 20.6 sq in |
| F3 (anechoic) | 33.8 Hz |
| Max mounting depth | 7.01 in |
| Height | 11.5 in |
| Width | 36 in |
| Depth | 11.5 in |
| Baffle | Double, 1.5 in |
| Made for | Dayton Audio Reference RSS390HF |
