Dayton Audio Reference RSS315HO Ported Wedge Enclosure, Single 12″
$399.99
Ported box for a single 12-inch subwoofer, made for the Dayton Audio Reference RSS315HO: 1.44 cu ft net, tuned 36.5 Hz, up to 5.75 in mounting depth.
Dayton Audio Reference RSS315H...
$399.99
Dayton Audio Reference RSS315HO ported wedge enclosure for a single 12-inch driver: 1.44 cu ft net, tuned to 36.5 Hz, 23 sq in of port, F3 32.7 Hz.
Around 36.5 Hz the port does most of the work and output climbs several decibels over the same driver sealed. Below 36.5 Hz the cone is no longer loaded, so set a subsonic filter a few hertz under it.
With 23 square inches of port, air speed stays low enough that the port should stay quiet at high volume.

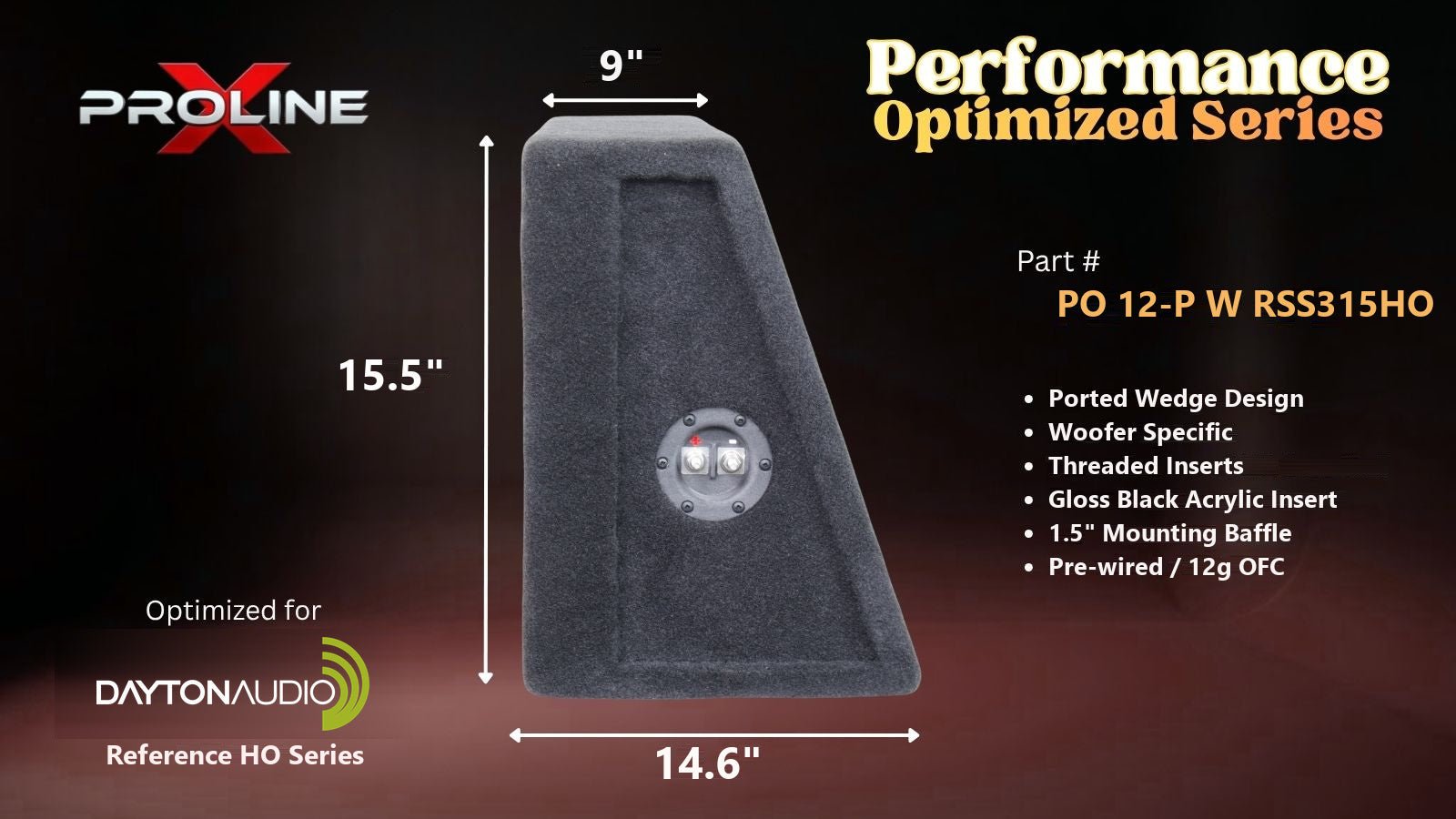

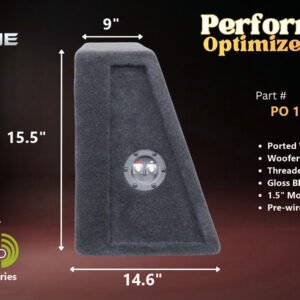

The wedge shape sits against the rear seat back and fires into the trunk, leaving the floor in front of it free.

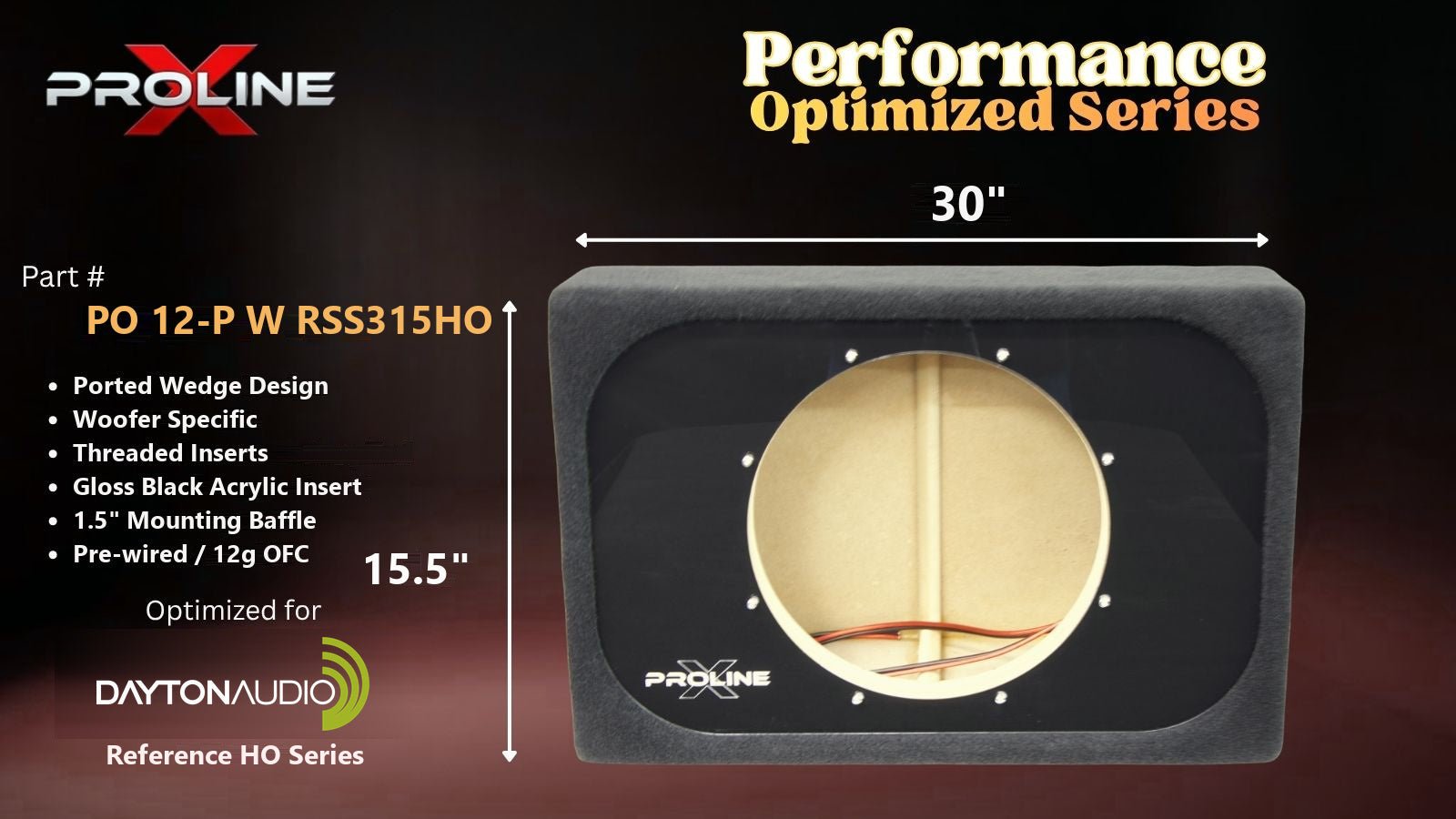

Listed construction: 3/4-inch MDF, with a doubled 1.5-inch front baffle, dado and V-groove panel joints, polyfill installed, terminal cup.
Your subwoofer's mounting depth needs to be 5.75 inches or less. The published figures assume the dual 4 ohm and single 4 ohm versions of the driver. Send us your subwoofer model and we will check it against this box before you order.
Questions about fit? Message us on WhatsApp.
Box specifications
| Type | Ported |
|---|---|
| Drivers | Single, 12-inch |
| Net volume | 1.44 cu ft |
| Tuning | 36.5 Hz |
| Port area | 23 sq in |
| F3 (anechoic) | 32.7 Hz |
| Max mounting depth | 5.75 in |
| Height | 9 in |
| Width | 30 in |
| Depth | 9 in |
| Baffle | Double, 1.5 in |
| Made for | Dayton Audio Reference RSS315HO |
