Dayton Audio Reference RSS315HO Ported Enclosure, Single 12″
$417.99
Ported box for a single 12-inch subwoofer, made for the Dayton Audio Reference RSS315HO: 1.18 cu ft net, tuned 35 Hz, up to 5.75 in mounting depth.
Dayton Audio Reference RSS315H...
$417.99

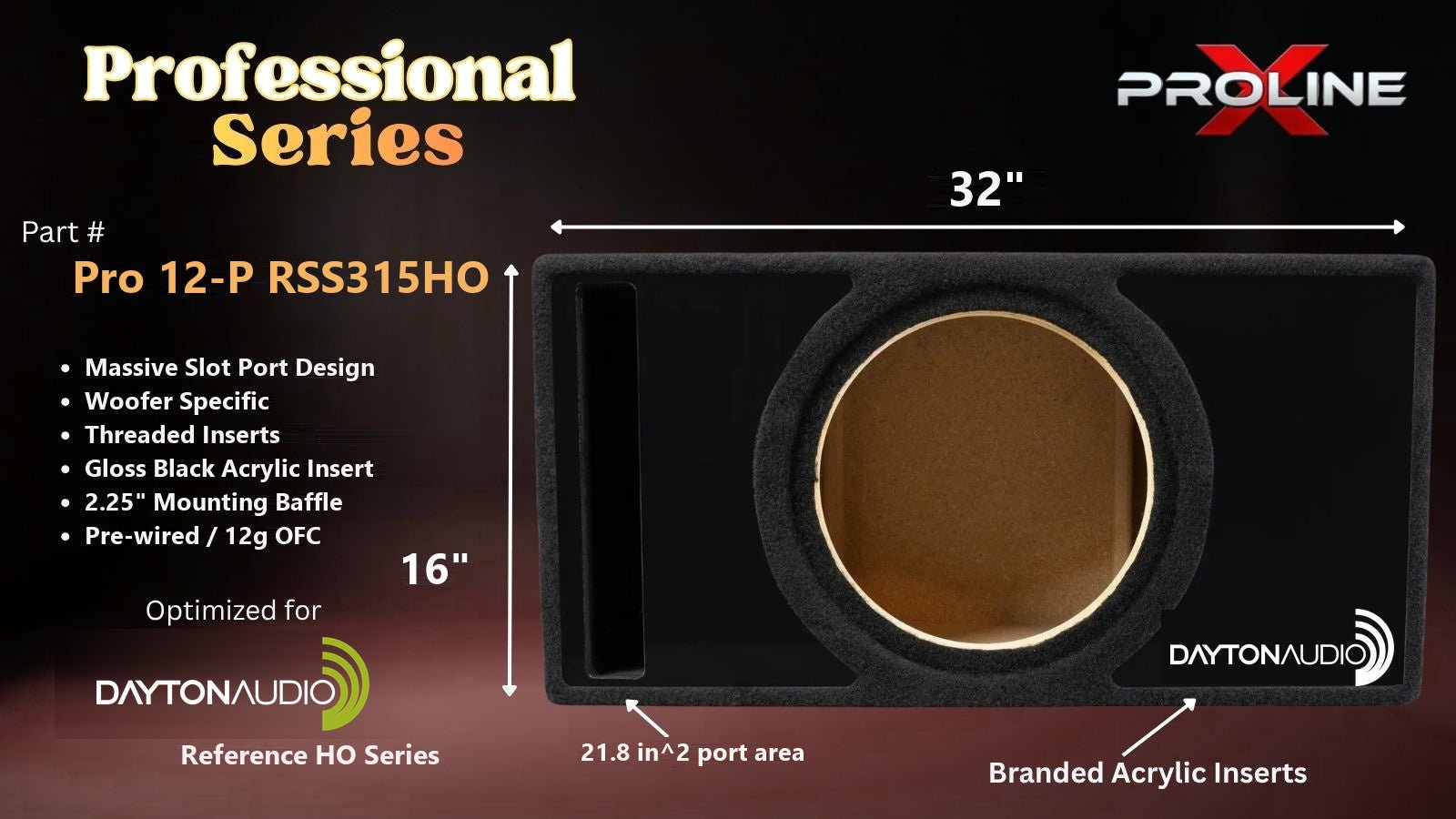

Dayton Audio Reference RSS315HO ported enclosure for a single 12-inch driver: 1.18 cu ft net, tuned to 35 Hz, 21.8 sq in of port, F3 33 Hz.
The 35 Hz tuning is where this box is loudest per watt. Protect the subwoofer with a subsonic filter set 5 to 10 Hz below that number, because the port stops controlling the cone under tuning.
21.8 square inches of port area keeps port noise down when the system is pushed.
Listed construction: polyfill installed.
Your subwoofer's mounting depth needs to be 5.75 inches or less. The published figures assume the dual 4 ohm versions of the driver. Tell us which subwoofer you run and we will confirm the match first.
Questions about fit? Call or text (785) 430-0822.
Box specifications
| Type | Ported |
|---|---|
| Drivers | Single, 12-inch |
| Net volume | 1.18 cu ft |
| Tuning | 35 Hz |
| Port area | 21.8 sq in |
| F3 (anechoic) | 33 Hz |
| Max mounting depth | 5.75 in |
| Height | 10.5 in |
| Width | 32 in |
| Depth | 10.5 in |
| Baffle | Double, 1.5 in |
| Made for | Dayton Audio Reference RSS315HO |
