Dayton Audio Reference RSS265HO Ported Enclosure, Single 10″
$402.99
Ported box for a single 10-inch subwoofer, made for the Dayton Audio Reference RSS265HO: 1.18 cu ft net, tuned 35.5 Hz, up to 5.37 in mounting depth.
Dayton Audio Reference RSS265H...
$402.99

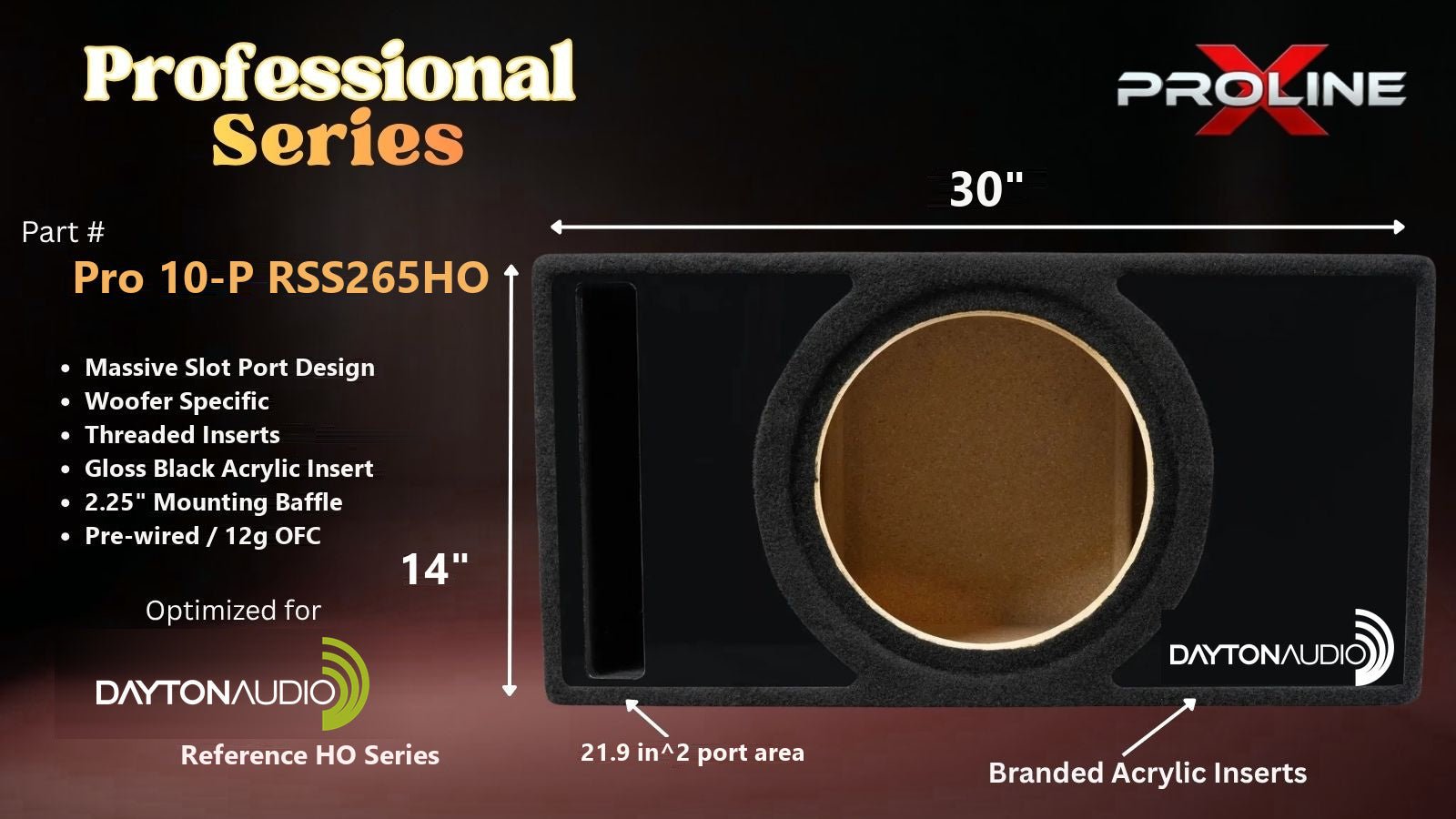

Dayton Audio Reference RSS265HO ported enclosure for a single 10-inch driver: 1.18 cu ft net, tuned to 35.5 Hz, 21.9 sq in of port, F3 30.6 Hz.
Around 35.5 Hz the port does most of the work and output climbs several decibels over the same driver sealed. Below 35.5 Hz the cone is no longer loaded, so set a subsonic filter a few hertz under it.
With 21.9 square inches of port, air speed stays low enough that the port should stay quiet at high volume.
Listed construction: polyfill installed.
Your subwoofer's mounting depth needs to be 5.37 inches or less. The published figures assume the dual 4 ohm versions of the driver. Send us your subwoofer model and we will check it against this box before you order.
Questions about fit? Call or text (785) 430-0822.
Box specifications
| Type | Ported |
|---|---|
| Drivers | Single, 10-inch |
| Net volume | 1.18 cu ft |
| Tuning | 35.5 Hz |
| Port area | 21.9 sq in |
| F3 (anechoic) | 30.6 Hz |
| Max mounting depth | 5.37 in |
| Height | 12 in |
| Width | 30 in |
| Depth | 12 in |
| Baffle | Double, 1.5 in |
| Made for | Dayton Audio Reference RSS265HO |
